KOBELCO is on the leading edge of innovative rotor design. Our research and development engineers continue to design, evaluate and test numerous cross-sectional profiles and wing arrangements. This ongoing commitment to research and development has resulted in the highest performance rotors available.
One of the features of the KOBELCO rotors, the Hyper-Cooling structure 3 series, suits best for the modern tire compounding and the low temperature mixing for rubber goods.
- •High shear and reaction mixing
- •One of the best applications for Silica mixing with coupling agent
- •Kobelco Hyper-Cooling structure 3 Series
- •Providing intermeshing technology with tangential Mixers
- •Interchangeability with Kobelco 4-wing or 6-wing rotors
- •Even speed or friction ratio is possible
- •High energy input and mixing efficiency
- •Better intake than other intermeshing rotors
- •Excellent dispersion
- •Excellent for silica compounding in tire production
- •Most appropriate for rubber goods compounding
- •Kobelco Hyper-Cooling structure 3 Series
- •Even speed only
- •Request approx. 25% more drive power than 2-wing rotors
-

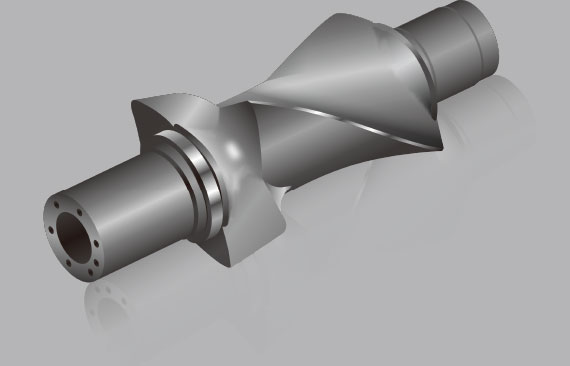

4WN Low temperature mixing rotor:
Recommended for Silica masterbatch & Final. -

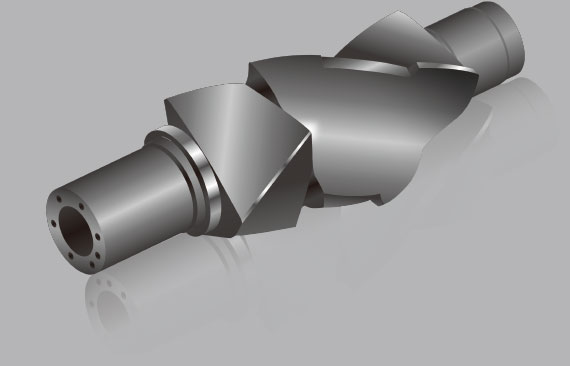

6WI Advanced General-purpose rotor:
Recommended for CB master batch & Re-mill. -
4WH General-purpose rotor:
Recommended for CB masterbatch & Re-mill.
Recommended for rubber goods compounding.
KOBELCO developed the Hyper Cooling Rotor KCS3 Series to achieve more stable quality and increase productivity.
Hyper Cooling Rotor KCS3 Series offers improvements in the ability tocontrol of mixing temperature to input high energy into the compound, Particularly recommended for Silica compounding and rubber goods compounding.
