K-TEN780CF: quenched and tempered 780 N/mm2 class high-strength steel plate for welded structures with low crack susceptibility (Crack-Free Steel)
1. Features
- In additions to the advantages offered by standard-type K-TEN, Crack-Free Steel offers greatly reduced preheat temperatures and highly improved weldability.
- Preheating for welding construction can be greatly reduced.
2. Major corresponding standards
- JIS G3128 (High Yield Strength Steel Plates for Welded Structures) SHY685N, SHY685NS
- WES 3001 (Weldable High-Tensile Strength Steel Plates HW685Q
3. Applications
- Application to various welded structures including spherical tanks, bridges, penstocks, and off-shore structures can be expected.

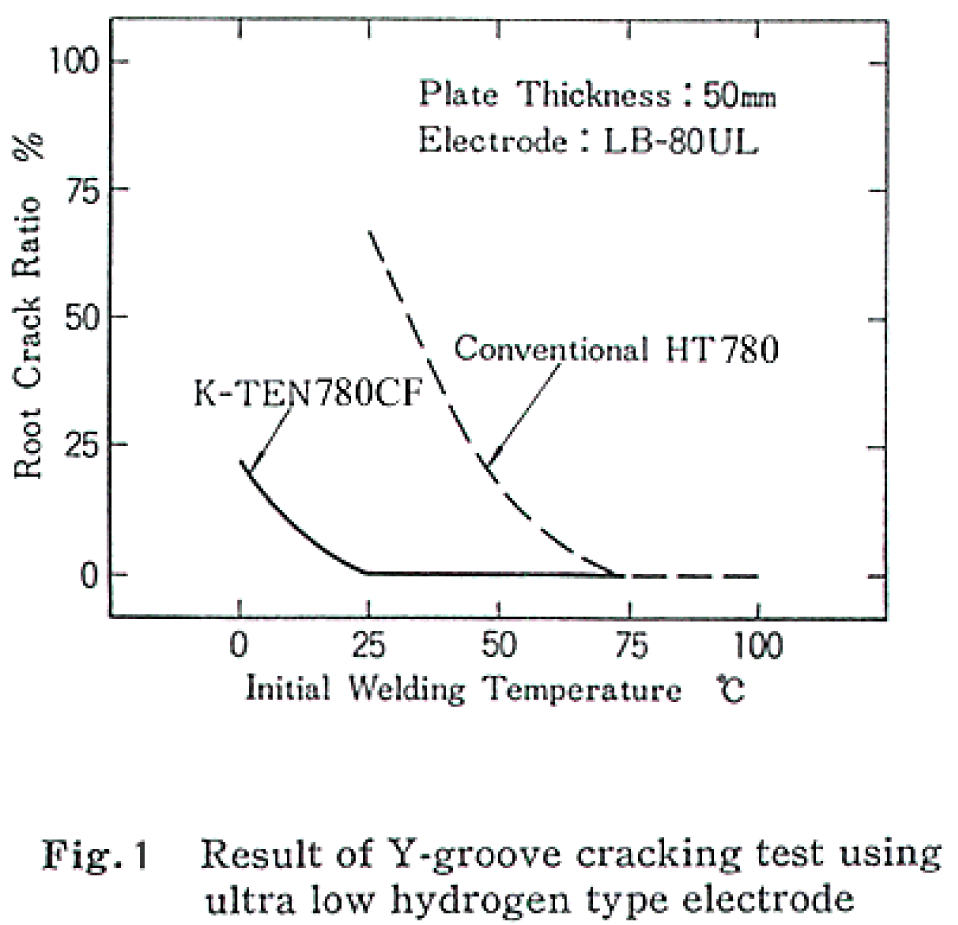

4. Typical characteristics
