Steel plate for molten zinc vessel KZS

1. Features

Improved corrosion resistance to molten zinc with Al-killed steel by a special manufacturing method

2. Size availability

Applicable plate thickness:: 6 to 100 mm
Minimum plate width:: 1,500 mm
Minimum plate length:: 3,000 mm

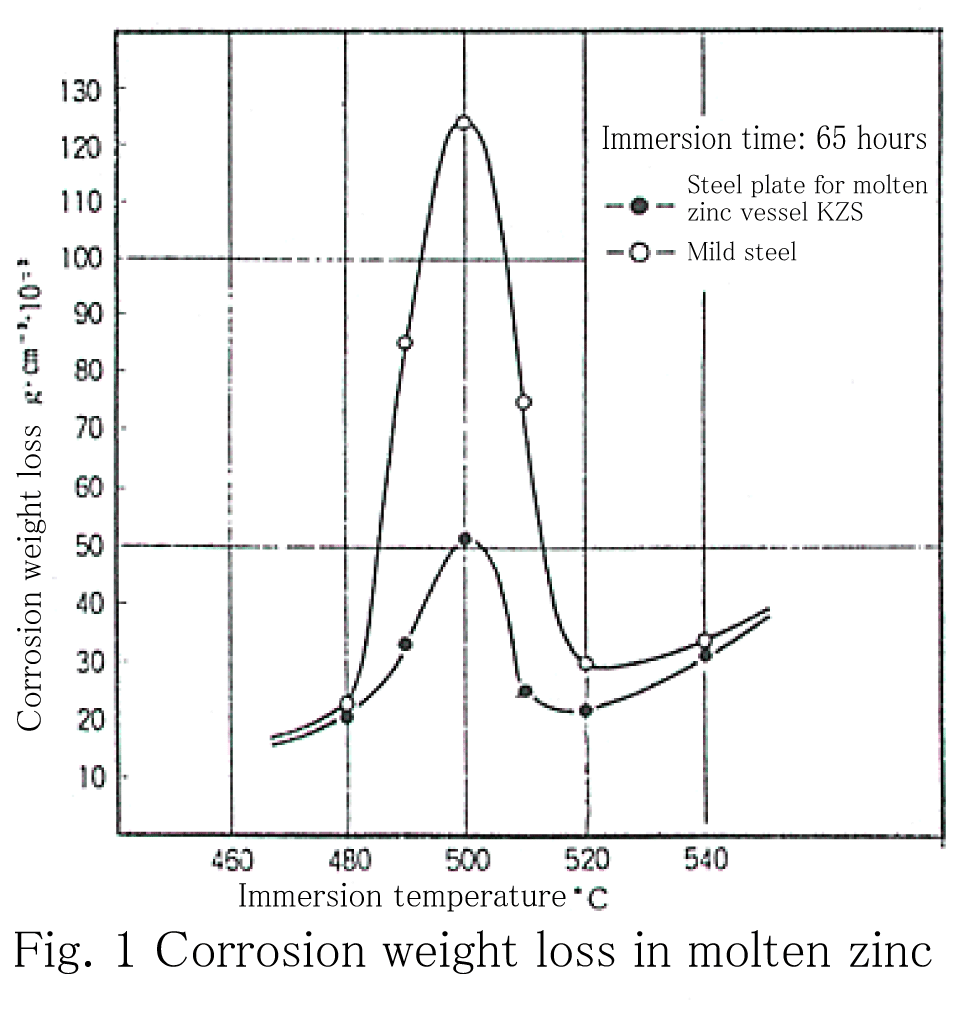

3. Typical characteristics

Thickness:: 32 mm
hot-dip galvanized:: Purity 99.99%
Dipping temperature:: 480°C to 540°C.
Immersion time:: 65 hrs.
Test piece:: 5 × 20 × 100 mm.
