Metal Capsule Manufacturing Equipment
Metal Encapsulation Equipment for 'Dr. HIP'
'Dr. Capsule' is a machine to weld, evacuate, and heat-seal small metal capsules used exclusively for 'Dr. HIP'. With 'Dr. Capsule', you can manufacture metal capsules easily without any special skills.
Specification
| Dimensions of Capsule | Φ33mm X 50mmL |
|---|---|
| Heating Furnace | Max 650°C |
| Vacuum | 0.14 Pa（1 X 10-3Torr） |
| Dimensions | 800mm(W) X 700mm(D) X 1300mm(H) |
| Weight | 200 kg |

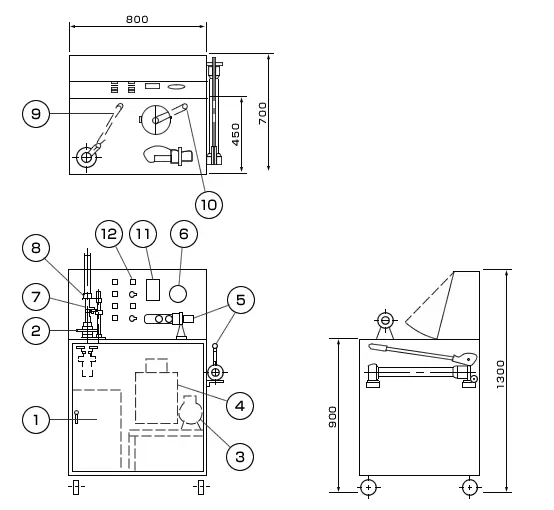

| 1 | TIG Welding Machine | 7 | Torch Holder |
|---|---|---|---|
| 2 | Turntable | 8 | Pipe Holder |
| 3 | Vacuum Pump | 9 | Torch Pullout Opening |
| 4 | Electric Furnace | 10 | Vacuum Hose Pullout Opening |
| 5 | Manual Hydraulic Press | 11 | Temperature Controller |
| 6 | Pressure Gauge | 12 | Switches |

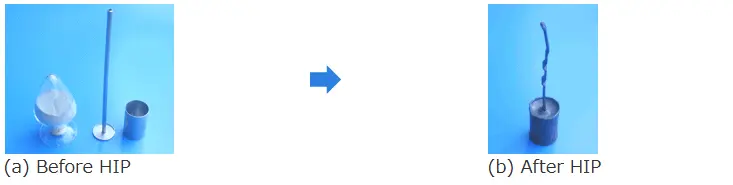

Metal Capsule
(a) Before HIP
(b) After HIP
Metal-Foil Encapsulation Equipment

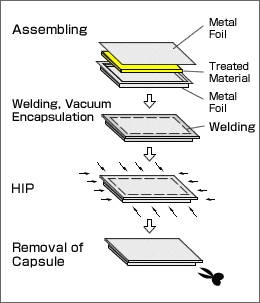

This equipment is used to manufacure capsels using 100 to 300µm-thick metal foil. The features are as follows:
1. HIP treatment of sheeted materials
It can apply HIP treatment to even a sheeted material without any distortions or cracks because uniform pressure is transmitted throughout the metal-foil capsule. HIP treatment of sheeted materials is available as uniform pressure is applied to the capsule due to use of thin metal foil for the capsule.
2. Reduction of capsule cost
The extremely thin metal foil (100 to 300µm) helps you reduce your capsule material cost.
3. Easy removal of capusels
Capsules can be removed easily with scissors after HIP.
| Type | Compact Type | Standard Type | Large Type |
|---|---|---|---|
| Dimensions of Available Capsule |
200mm(W) X 200mm(D) | 400mm(W) X 400mm(D) | 700mm(W) X 700mm(D) |
| Weldable Thickness |
100 to 300μｍ | ||
| Dimensions of Vacuum Chamber |
580mm(W) X 300mm(D) | 880mm(W) X 485mm(D) | 1580mm(W) X 760mm(D) |
| Dimensions | 640mm(W) X 700mm(D) X 1350mm(H) |
1300mm(W) X 1000mm(D) X 1200mm(H) |
2150mm(W) X 1680mm(D) X 1350mm(H) |
| Vacuum level | 6.7Pa（5 X 10-2Torr） | ||
| Weight | 500kg | 540kg | 1500kg |
Application Examples
Medium-and Large-Scale HIP Equipment- Standard Small-Scale HIP Equipment
- Dr. Series
- Sintering HIP Equipment
- Ultra High Temperature / Ultra High Pressure HIP Equipment
- Other HIP Equipment
- Metal Capsule Manufacturing Equipment
- Compound Semiconductor Single Crystal Manufacturing Equipment
