Low-temperature steel plate for multipurpose gas carriers

1. Features

Steel plate with reduced risk of ammonia stress corrosion cracking, which is a concern for multipurpose gas carriers (carrying ammonia as well as LPG), by greatly reducing the carbon content affecting the HAZ hardness. In addition, its HAZ toughness has also been greatly improved.

2. Major corresponding standards

NK classification:: KL27, KL33 (corresponding to other classification standards)

3. Applications

Cargo tanks for multi-purpose gas carriers, secondary members, etc.

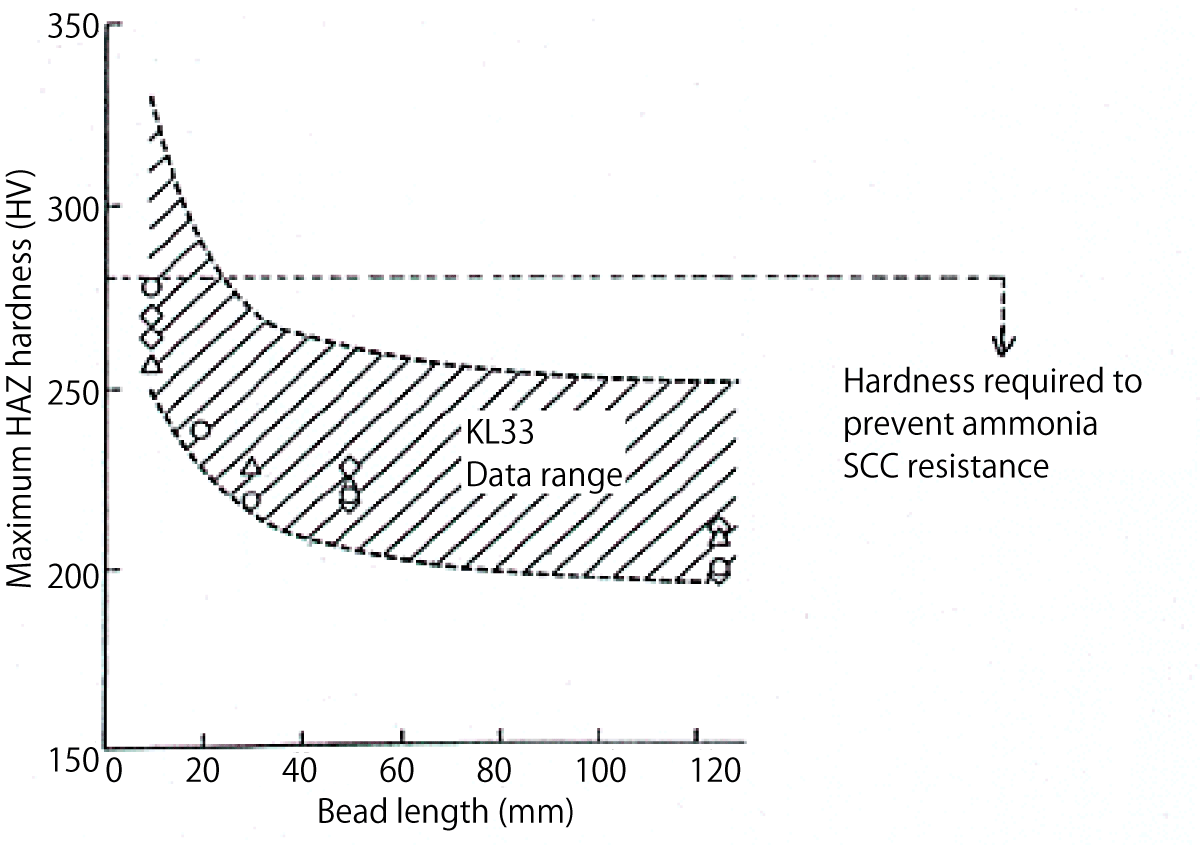

4. Typical characteristics
