Application

Filler Compound

Inorganic fillers such as talc, calcium carbonate and silica.
Pigment such as titanium white and carbon black. Various flame retardants such as aluminum hydroxide and magnesium.
Functional fillers such as ferrite, salt and wood powder.

Filler Compound

Screw elements for highly efficient conveying of fille

Screw elements for highly efficient conveying of filler

HYPERKTX73MX-UHS

Side Feed Compound

Fiber type filler such as glass fiber, carbon fiber and whisker Pigment such as titanium white and carbon black Others such as mica.

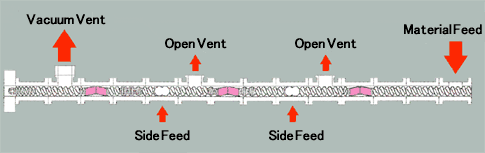

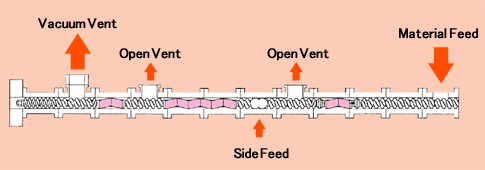

Side Feed Compound

Triple Side Feed Compactor

HYPERKTX46XHT-HS

Polymer Alloy and Reaction

PP + Elastomer + Peroxide,
PC + ABS, PET or PBT
ABS + PBT, TPO, TPE or PVC

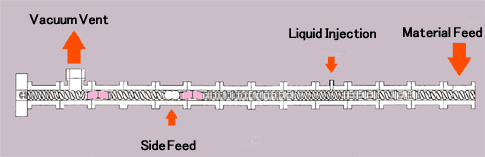

Polymer Alloy and Reaction

Screw elements for liquid dispersion

HYPERKTX59XHT-HS

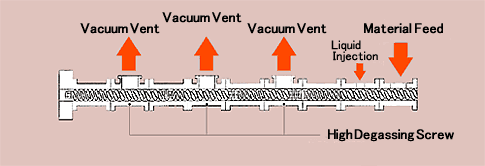

Degassing and Dewatering Extrusion

PC, POM, SAN, ABS, PMMA,
L-LDPE, PS, TR and EPDM

Long vent barrel

HYPER KTX 180 for degassing

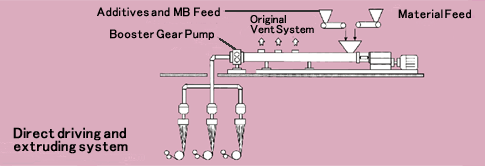

Direct Extrusion Forming

PE, TPO + flame retardant sheet and film

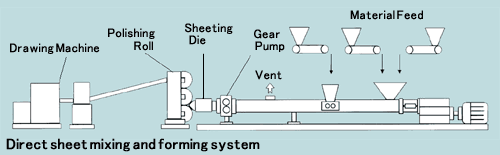

Direct Extrusion Forming

Polishing roll, sheet die and gear pump

HYPERKTX46 sheet extruding line

Spinning and Non- woven Fabric Extrusion

Fiber type filler such as glass fiber,carbon fiber and whisker. Pigment such as titanium white and carbon black. Others such as mica.

Spinning and Non- woven Fabric Extrusion

HYPERKTX104HT for PET drying

HYPERKTX46MX for Spinnig

Main Specification of HYPERKTX (MX series)

Model HYPERKTX	Screw diameter (mm)	MX-SS	MX-HS	MX-SHS	MX-UHS	Max.torque (N· m)
Model HYPERKTX	Screw diameter (mm)	Max.Speed (rpm)				Max.torque (N· m)
HYPERKTX 30	32	503	756	1,104	1,806	479
HYPERKTX 46	46	358	494	750	1,716	1,446
HYPERKTX 59	59	332	591	767	1,600	3,222
HYPERKTX 73	73	336	516	744	1,447	5,936
HYPERKTX 85	85	329	456	751	1,219	9,392
HYPERKTX 104	104	309	507	729	1,022	16,808
HYPERKTX 125	125	315	500	810		30,301
HYPERKTX 140	140	285	475	716		40,275
HYPERKTX 160	160	280	610			62,591
HYPERKTX 180	180	270	540			88,381
HYPERKTX 200	200	282	450			118,785
HYPERKTX 250	250	270				231,054
HYPERKTX 315	315	267				464,824

Please contact to us regarding detail specification of screw rpm and maximum torque of each size of MX series.
Other models are available. Please consult us.

Outline dimensions of HYPERKTX

Model HYPERKTX	Outline dimensions (mm)				Weight (kg)
Model HYPERKTX	A	B	C	D	Weight (kg)
HYPERKTX 30	850	1,170	2,295	1,050	1,050
HYPERKTX 46	800	1,715	4,900	1,100	4,600
HYPERKTX 59	800	2,235	5,900	1,100	6,400
HYPERKTX 73	800	2,615	6,800	1,300	7,800
HYPERKTX 85	900	2990	7,500	1,600	12,000
HYPERKTX 104	1,100	3,730	8,500	1,700	18,000
HYPERKTX 125	1,100	3,990
HYPERKTX 140	1,100	4,560
HYPERKTX 160	1,100	5,225
HYPERKTX 180	1,300	5,700
HYPERKTX 200	1,300	6,460
HYPERKTX 250	1,300	8,075
HYPERKTX 315	1,300	9,975

Please contact to us regarding outline dimensions of HYPERKTX125-315. The dimensions of those sizes differ according to the specification.

SCHEMATIC

Main specification of HYPERKTX (XHT series)

Model code HYPERKTX	Screw diameter (mm)	XHT		Max.torque (N· m)
		XHT-SS	XHT-HS
		Motor (kW)
		screw speed (rpm)
HYPERKTX 30	32	11	18.5	323
HYPERKTX 30	32	387	546	323
HYPERKTX 46	46	37	55	950
HYPERKTX 46	46	384	553	950
HYPERKTX 59	59	75	110	2,157
HYPERKTX 59	59	332	497	2,157
HYPERKTX 73	73	132	200	3,922
HYPERKTX 73	73	336	487	3,922
HYPERKTX 85	85	250	315	6,334
HYPERKTX 85	85	377	484	6,334
HYPERKTX 104	104	400	630	11,542
HYPERKTX 104	104	331	535	11,542
HYPERKTX 125	125	630		19,164
HYPERKTX 125	125	314		19,164
HYPERKTX 140	140	900		28,655
HYPERKTX 140	140	300		28,655
HYPERKTX 160	160	1,350		42,417
HYPERKTX 160	160	304		42,417
HYPERKTX 180	180	1,900		60,093
HYPERKTX 180	180	302		60,093
HYPERKTX 200	200	2,500		82,342
HYPERKTX 200	200	290		82,342
HYPERKTX 250	250	4,500		159,914
HYPERKTX 250	250	270		159,914
HYPERKTX 315	315	9,000		321,967
HYPERKTX 315	315	267		321,967

Estimated Capacity

1) Powder filler compound

Polymer :: PP, LDPE, LLDPE, HDPE, PS, ABS, PET, PBT, PC, PPS
Additive :: 5-80wt% : Talc, Calcium carbonate, Carbon black, Titanium dioxide, Mica, Clay, Wood powder, Pigment, Forming agent

2) Fiber filler compound

Polymer :: PP, PS, ABS, PET, PBT, PA, PEEK, PPS, LCP, PC
Additive :: 10-60wt% : Grass fiber, Carbon fiber

3) Flame retardant compound

Polymer :: PP, PS, ABS, PA, PC+ABS, EVA, EEA
Additive :: 5-60wt% : Flame retardant

4) Degassing extrusion

Polymer :: PS, ABS, PET, PC, PE, Elastomer
Degassing rate :: -30wt%

5) Dewatering extrusion

Polymer :: ABS, Elastomer
Dewatering rate :: -70wt%

6) Compound molding

Polymer :: PP, PS, PE, EVA, PET
Additive :: 5-40wt% : Talc, Calcium carbonate, Carbon black, Titanium dioxide, Grass fiber, Flame retardant, Forming agent

(kg/h)

Model	HYPERKTX 30MX		HYPERKTX 46MX		HYPERKTX 59MX		HYPERKTX 73MX		HYPERKTX 85MX
Screw diameter (mm)	32		46		59		73		85
Screw diameter (mm)	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
Powder filler compound	20	400	50	1,000	100	2,000	150	3,200	250	5,000
Fiber filler compound	20	300	50	700	100	1,500	150	2,300	250	3,300
Flame retardant compound	10	150	25	400	50	800	80	1,300	150	1,900
Degassing extrusion	5	100	10	200	20	400	50	700	50	1,000
Dewatering extrusion	10	150	30	300	50	600	100	1,000	150	1,400
Compound molding	5	100	10	250	20	500	30	800	50	1,200

(kg/h)

Model	HYPERKTX 104MX		HYPERKTX 125MX		HYPERKTX 140MX		HYPERKTX 160MX		HYPERKTX 180MX
Screw diameter (mm)	104		125		140		160		180
Screw diameter (mm)	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
Powder filler compound	400	8,000	500	12,000	1,000	17,000
Fiber filler compound	400	5,000	500	9,000	1,000	12,000	1,200	15,000
Flame retardant compound	200	3,000
Degassing extrusion	80	1,500	150	2,500	200	3,000	250	4,000	300	6,000
Dewatering extrusion	250	2,500	400	3,500	500	5,000	700	6,000	900	9,000
Compound molding	80	2,000	150	3,000	200	4000

Production capacity will be changed dependiong on property of raw materials, content of filler, accuracy of the material feed and required quality conditions.
