Dr. Series
Space-saving CIP equipment for R&D

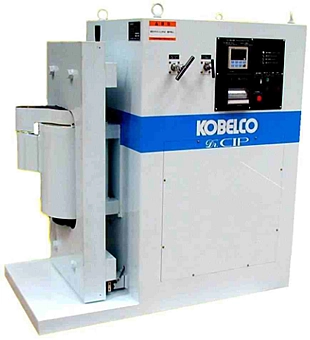

Dr. CIP
Main Specifications
| Maximum Pressure | 392MPa (4000kgf/cm2) |
|---|---|
| Inner Dimensions of Vessel Inner Diameter X Height |
Φ100mm X 300mmL |
| Dimensions | 1300mm (W) X 700mm (D) X 1300mm (H) |
Utilities
| Electric Source | AC 220/200V ±10%, 50/60Hz ±10%, 3-Phase 3-Line System, 4kVA |
|---|---|
| Compressed Air | Clean and dry compressed air higher than 0.4MPa at inlet, 20 l/min |
Features
The press frame system makes the equipment structure extremely simple, reliable and easy to remove a green body. - A simple cylindrical pressure vessel provides high reliability and safety.
- An automatic air vent valve attached as a standard device saves you from bothersome air removal operations.
- The electric interlocking system prevents overpressure.
- The newly-developed "Dry Attachment" (option) is available to use the equipment as a Dry Bag CIP.

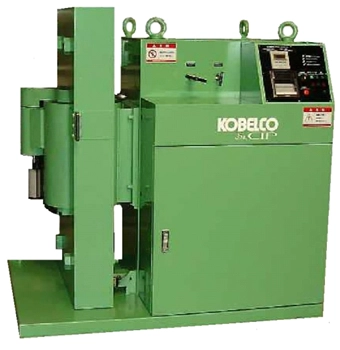

Sr. CIP
Example of Specifications
| Maximum Pressure | Material Dimensions Inner Diameter X Height |
|---|---|
| 147MPa (1500kgf/cm2) | Φ280mm X 400mmL |
| 294MPa (3000kgf/cm2) | Φ200mm X 400mmL |
| 392MPa (4000kgf/cm2) | Φ150mm X 400mmL |

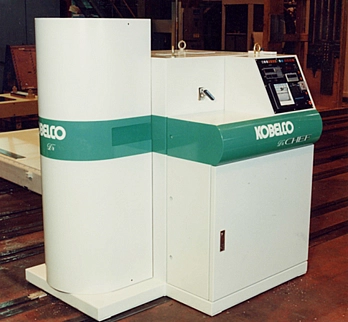

Dr.CHEF
Main Specifications
| Standard Specifications | Optional Specifications | |
|---|---|---|
| Maximum Pressure | 686MPa (7000kgf/cm2) | 981MPa (10000kgf/cm2) |
| Inner Dimensions of Vessel Inner Diameter X Height |
Φ60mm X 200mmL | Φ50mm X 150mmL |
| Dimensions | 1370mm (W) X 1100mm (D) X 1495mm (H) | |
| Operating Temperature | -20 to 80°C (Temperatures are subject to optional heating and cooling units.) |
|
Utilities
| Electric Source | AC 220/200 V ±10%, 50/60 Hz ±10%, 3-phase 3-line system, 2kVA |
|---|
Features
- The press frame system makes the equipment structure extremely simple, reliable and safe.
- A simple cylindrical pressure vessel provides high reliability and safety.
- The piston-type system assures a highly-reliable pressurization.
- Maintenance of the piston packing part is easy as it is released after every operation.
- Pure water can be used as a pressure medium because the parts exposed to water are made of stainless steel.
Medium-and Large-Scale HIP Equipment- Standard Small-Scale HIP Equipment
- Dr. Series
- Sintering HIP Equipment
- Ultra High Temperature / Ultra High Pressure HIP Equipment
- Other HIP Equipment
- Metal Capsule Manufacturing Equipment
- Compound Semiconductor Single Crystal Manufacturing Equipment
