BOG re-liquefaction system application for DCHE

Diffusion bonded compact HX application for offshore

DCHE is applicable to wide range of offshore use such as followings.
High pressure use and small foot print, such as:

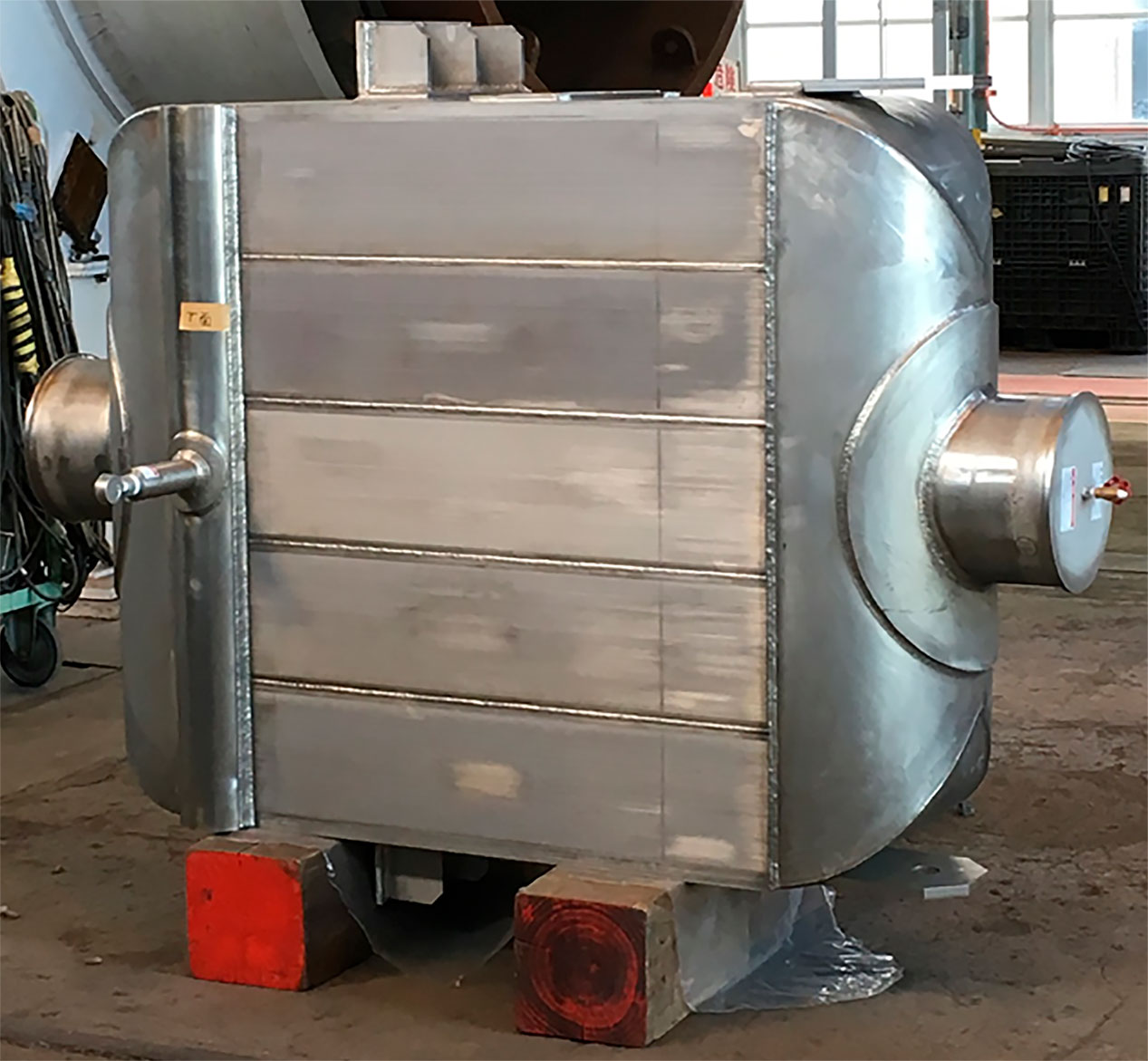

for BOG partial re-liquefaction system

580W × 1360H × 1200L (mm), 6 ton
Design pressure: 38 MPa
Design temperature: -196 °C to 60 °C

* ASME with Stamp and DNV ship clarification
