Natural Gas Processing application for DCHE

Diffusion bonded compact HX application for Natural gas processing

DCHE is applicable for Natural gas processing plant, especially high pressure and/or small foot print are required.

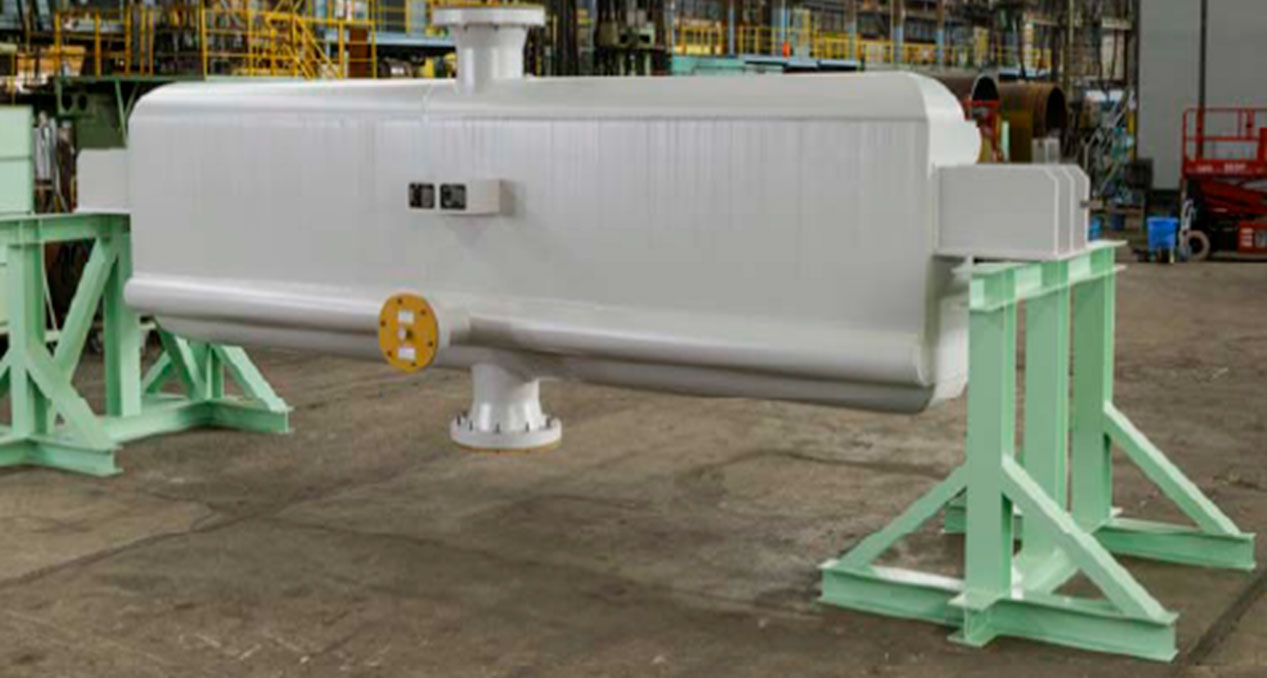

Hydrocarbon cold gas / gas exchanger

580W × 1200H × 5200L (mm), 21.3 ton
Design pressure: 13.9 MPa
Design temperature: -70 °C to 80 °C

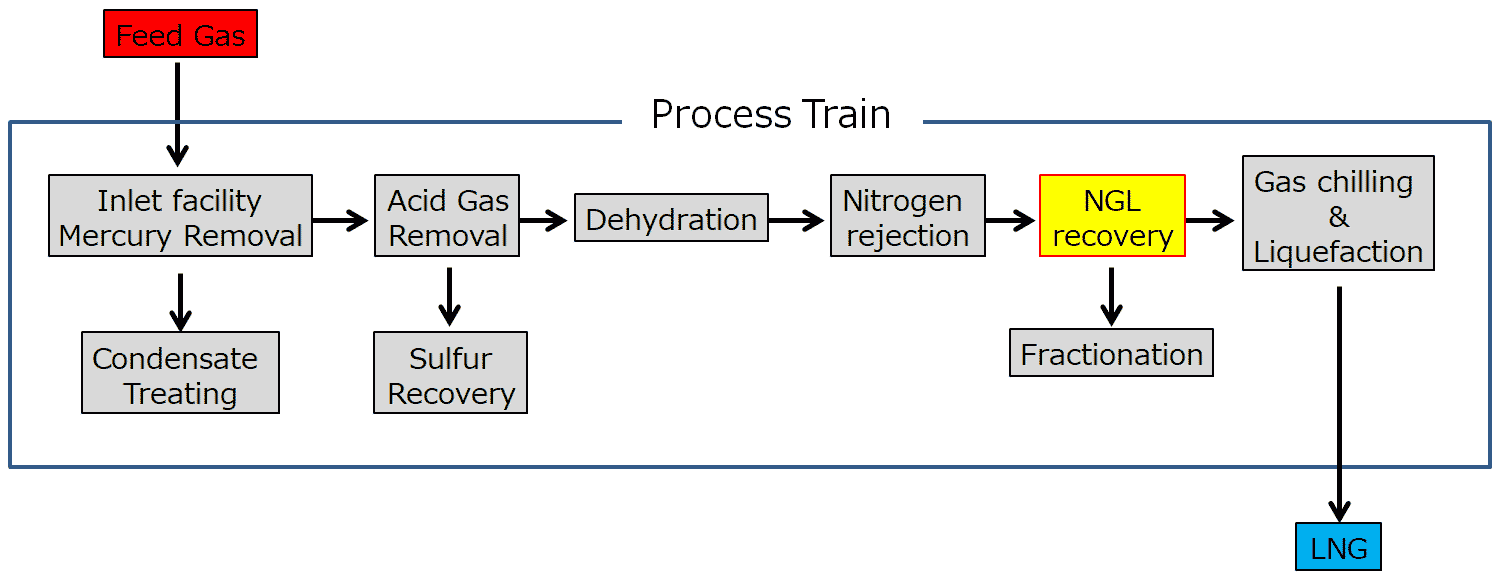

NGL recovery is one of main application for Diffusion bonded compact heat exchanger.
