FPSO application for DCHE

Diffusion bonded compact HX application for offshore

DCHE is applicable to wide range of offshore use, especially high pressure and/or small foot print are required.

Natural gas heat exchanger for BOG Partial re-liquefaction system.
High pressure hydrocarbon gas cooler for FLNG and FPSO.
LNG vaporizer for FSRU and Fuel Gas Supply System.
Replacement with Shell & Tube type HX

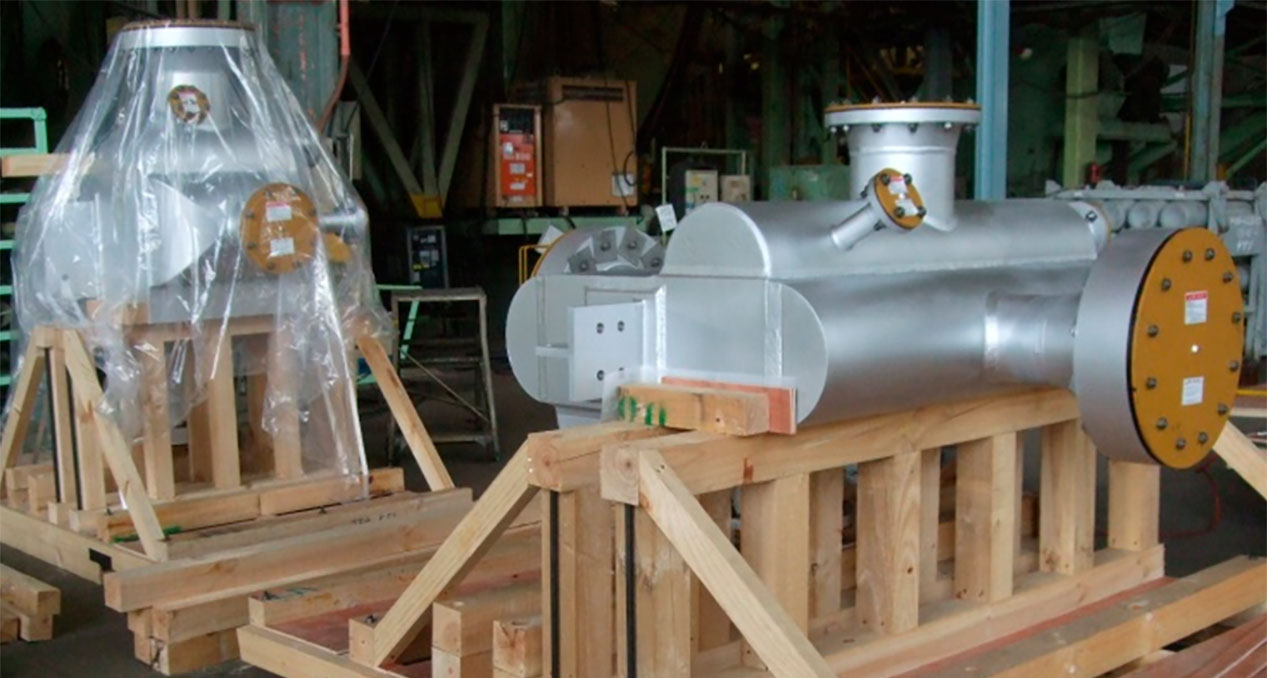

Diffusion bonded compact HX application example for FPSO

Hydrocarbon high pressure gas cooler

580W × 730H × 900L (mm), 2700 kg
Core: Stainless steel type 316L
Header, nozzle & Flange: Duplex type
Design pressure: 22 MPa
Design temperature: -46 °C to 17 °C

* ASME with Stamp and ABS ship classification

Maintenance & Cleaning

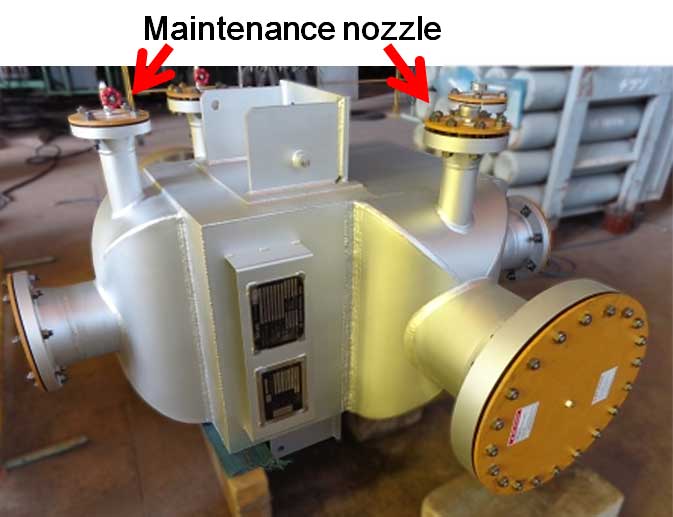

Periodical cleaning could be applicable by customer using maintenance nozzle.

Water jet cleaning
Chemical^* cleaning

* Chemical solvent is decided based on recommendation of cleaning maker which we have good connection with.

* Strainer can be prepared accordingly.

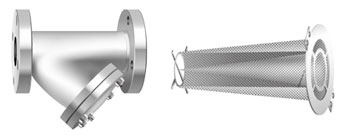

Sample image of Y-strainer and conical type
