Hydrogen Re-fueling Station

Heat Exchanger for Hydrogen Station

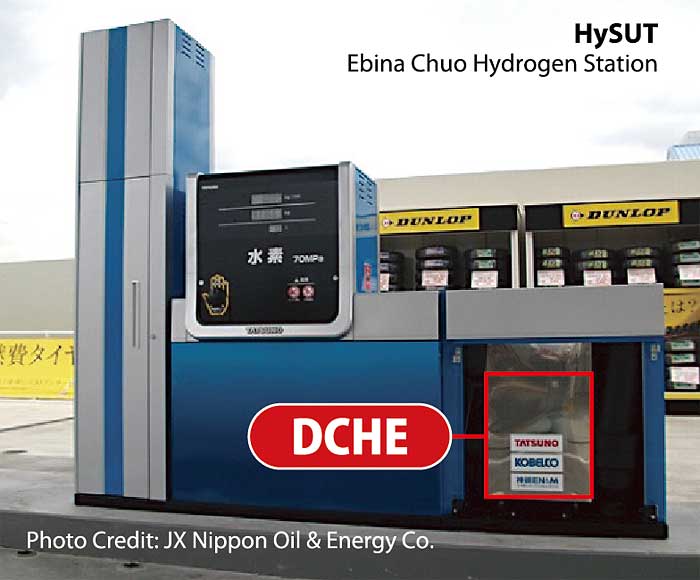

Example of integration with dispenser

Heat exchangers for hydrogen station require compactness and reliability for operational fluctuation. DCHE achieves the same performance in less than 5 % the plot area compared with a multitubular heat exchanger. The reliability of DCHE has been confirmed with stress simulation and a fatigue test under a high-pressure conditions using actual test pieces.

Fatigue Test Conditions

	Test 1	Test 2
Media	Water	Hydrogen
Temp.	20 [°C]	-40 [°C]
Pressure	1.0-86.5 [MPa]	0.6-92 [MPa]
Cycle	1,000,000	70,000

Applications

Pre-cooler for dispenser unit
After cooler for compressor

Pre-cooler for dispenser unit

After cooler for compressor

Contact

Sales & Marketing (Tokyo Office), Static Equipment Section Energy & Chemical Machinery Department: TEL: +81-3-5739-6652

Inquiry

Engineering Section (Takasago Equipment Plant), Static Equipment Department Industrial Machinery Division Energy & Chemical Equipment Business Unit (Hyogo): TEL: +81-79-445-7214
