Materials Testing Equipment under High Pressure H2 Gas
Equipment to evaluate mechanical properties of various materials used under a high pressure hydrogen environment such as those for fuel cells.
Application
| Specifications | |
|---|---|
| Applied Pressure | 0 to 99MPa |
| Applied Temperature | -45 to 90°C |
| Pressure Medium | Hydrogen, Argon and Others |
| Inner Dimensions of Vessel | Φ150 X 460mm |
| Axial Force Support | Press Frame |
| Dynamic Load of Equipment | Maximum: 100kN |
| Components of Equipment | Pressure Vessel, Fatigue Testing Machine, Compressor, Control Panel, Valve Stand, Thermostatic Chamber, Temperature Control Unit and Others |
| Temperature Control | Thermostatic Chamber & Jacket |
| Test Items | Tension(Round Bar and Flat Plate), Fatigue, Fracture Toughness (KIC,JIC), Fatigue Crack Propagation |
Features

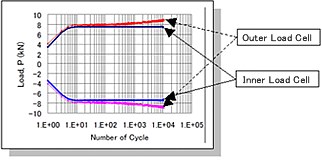

Load Transition during Fatigue Testing
(Provided by Nippon Steel Corporation)
Inner pressure releasing mechanism by the mandrel system. - Direct measurement of a testing load using a load cell inside the vessel.
- Axial force support by the twin press frame system.
- Inactive gas sealing structure with a thermostatic chamber.
We have delivered this equipment to Nippon Steel Corporation, Japan Steel Works, Ltd. and Kyushu University as a part of NEDO's project: 'Hydrogen-Society Common Infrastructure Development Project'.
