High Pressure Food Processor (HPP) Equipment

Commercialization of High Pressure Processed Foods

Research and development of high pressure technology has been making rapid progress in food industry, aiming for its commercialization. Starting with jam, fruit juice and unfrozen fruits, this technology has been used for processing meat products, dairy products, seafoods, grains, including packed cooked rice these days. In this way, high-pressure processed foods are becoming more and more familiar to our life in response to various needs of customers.

High Pressure Food Processor for Production Use

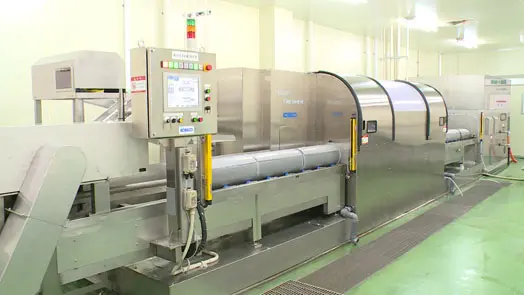

Equipment (Example 1: FOOD FRESHER)

  • Note: The trademark for FOOD FRESHER is currently pending.

Features of FOOD FRESHER

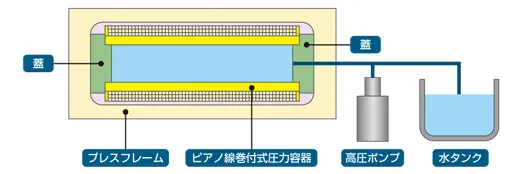

  • Product safety ensured with a wire-wound pressure vessel and press frame structure
  • Reliable manufacturing capabilities, with over 50 years of experience delivering ultra-high pressure equipment
  • Horizontal layout reduces concerns about building height limits and increases space for operation.
  • No need of particular qualifications or permissions for use or installation

Lineup

Application Model Pressure (MPa) Volume
Sterilization and processing FF6005 600 50
FF4010 400 100
FF4020 200
R&D Dr.CHEF 700 0.6
1000 0.3

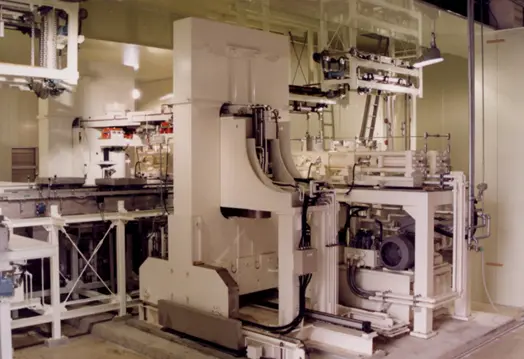

Equipment (Example 2)

Φ420mm X 940mmL X 392MPa X RT~80℃

Specifications

Maximum Pressure 392MPa(4000kgf/cm2)
Dimensions of Processing Vessel Φ420mm X 940mmL
Volume of Processing Vessel 130 liters
Pressure Medium Pure Water
Applied Temperature Room Temperature to 80℃
Load Support System Press Frame Support
Vessel Type Wire-Wound Thick Cylinder

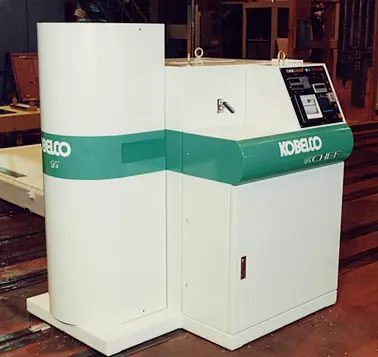

Dr. CHEF (High Pressure Processing Equipment for R&D)

Dr. CHEF (High Pressure Processing Equipment for R&D)

Specifications

Standard Specifications Optional Specifications
Maximum Pressure 686 MPa (7000kgf/cm2) 981 MPa (10000kgf/cm2)
Inner Dimensions of Vessel
Inner Diameter X Height
Φ60 mm X 200 mmL Φ50 mm X 150 mmL
Dimensions 1370 mm(W) X 1100 mm(D) X 1495 mm(H)
Applied Temperature -20 to 80℃
(Temperatures depend on optional heating and cooling units.)

Utilities

Electric Source AC 220/200V±10%, 50/60Hz±10%, 3-phase 3-line system, 2kVA
