High Pressure Testing Equipment

Simple and Reliable Design, Analyses and Testing
Excellent Safety for Long-Term Use

Our high-pressure testing equipment employs various pressure media with a highly safe and secure structure consisting of a cylindrical pressure vessel, top/bottom closures, and a press frame to hold the axial force. This structure allows for simple and highly reliable fatigue-resistant design, stress analyses, and nondestructive testing, assuring a high level of safety for long-term use.

Materials Testing Equipment under High Pressure H2 Gas

Application

Our Materials Testing Equipment under High Pressure H2 Gas examines mechanical properties of various materials used under a high pressure hydrogen environment such as fuel cell materials.

Models and equipment specifications

Model No. HFTM45-135 HFTM100-150 HFTM140-145
Applied pressure 0–45 MPa 0–99 MPa 0–140 MPa
Inner dimensions of vessel 135 mm dia. X 400 mm height 150 mm dia. X 460 mm height 145 mm dia. X 460 mm height
Applied temperature -45℃ to 200℃ (optional)
Pressure medium Hydrogen, helium, nitrogen, argon, etc.
Axial force support Twin press frame system
Dynamic load of testing equipment Up to 100kN
Frequency of testing equipment 0.1 to 10 Hz (Maximum frequency depends on test pressure)
(Frequency range expansion to 0.0001–10 Hz is optional)
Test items Tensile test, high/low cycle fatigue test
(test piece: JIS No. 14 sub-size Φ7 x GL25 mm)
KIC test, JIS test, fatigue crack propagation test
(test piece: ASTM 1 inch test piece)
Equipment components Pressure vessel, fatigue testing machine, compressor, operation control panel,
valve stand, thermostatic chamber, temperature control units (optional), and others

Features

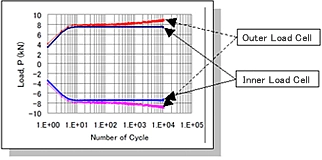

Load transition during fatigue testing
(Provided by Nippon Steel Corporation)
  • Inner pressure releasing mechanism by the mandrel system
  • Direct measurement of a testing load using a load cell inside the vessel
  • Axial force support by the twin press frame system
  • Inactive gas sealing structure with a thermostatic chamber

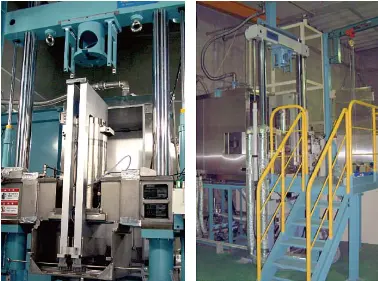

We have delivered a high-pressure testing equipment to Nippon Steel Corporation, Japan Steel Works, Ltd. and Kyushu University as a part of NEDO's project: Hydrogen-Society Common Infrastructure Development Project.

Water Pressure Testing Equipment

Our Water Pressure Testing Equipment is used for the water pressure testing of various devices.

Specifications

Applied pressure Maximum:118 MPa (1200kgf/cm2)
Applied temperature Room temperature
Pressure medium Water
Inner dimensions of vessel Φ350 X 1650mm
Axial force support Press frame (horizontal)
