Large-Scale Wet Bag CIP Equipment

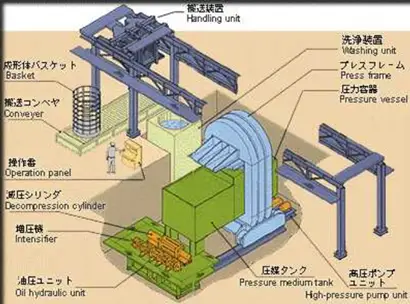

We design and manufacture equipment suitable for your installation conditions and production plans along with proposals of handling units, rubber mold washing units, powder charging units and others.

Φ2000mm X 3000mmL X 196MPa(2000kgf/cm2)

Typical Specifications

Maximum Pressure 98MPa(1000kgf/cm2) 196MPa(2000kgf/cm2) 294MPa(3000kgf/cm2)
Inner Dimensions of Vessel
Inner Diameter X Height
Φ2500mm X 3000mmL Φ2000mm X 3000mmL Φ1300mm X 3000mmL



We welcome your questions about our ultra high pressure equipment and high temperature, high pressure technologies.
