Piston Type CIP Equipment
Piston Type CIP Equipment
This equipment compresses the pressure medium by inserting a piston into the pressure vessel. Its structure is designed focusing on safety by removing high pressure pipings and placing the pressurizing cylinder on its upper part to lower the work height. This structure is applied to the units with pressure higher than 600MPa (6100kgf/cm2).

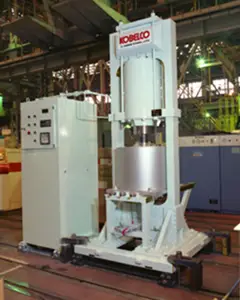

Φ100mm X 200mmL X 588MPa X -20 to 200°C

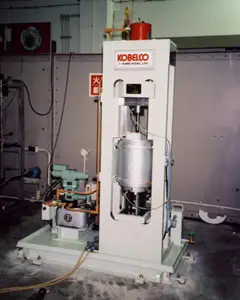

Φ25mm X 100mmL X 1470MPa(15000kgf/cm2)
Typical Specifications
| Type | Maximum Pressure | Dimensions of Pressure Vessel Inner Diameter X Height |
Remarks |
|---|---|---|---|
| P100 | 1470MPa (15000kgf/cm2) | Φ25mm X 100mmL | |
| P200 | 200MPa (2040kgf/cm2) | Φ100mm X 200mmL | Max530°C |
| P400 | 784MPa (8000kgf/cm2) | Φ80mm X 180mmL | RT to 130°C |
