ALUMINUM Honeycomb Panel Vacuum chuck
Front-end Process
Weight reduction of manufacturing equipment

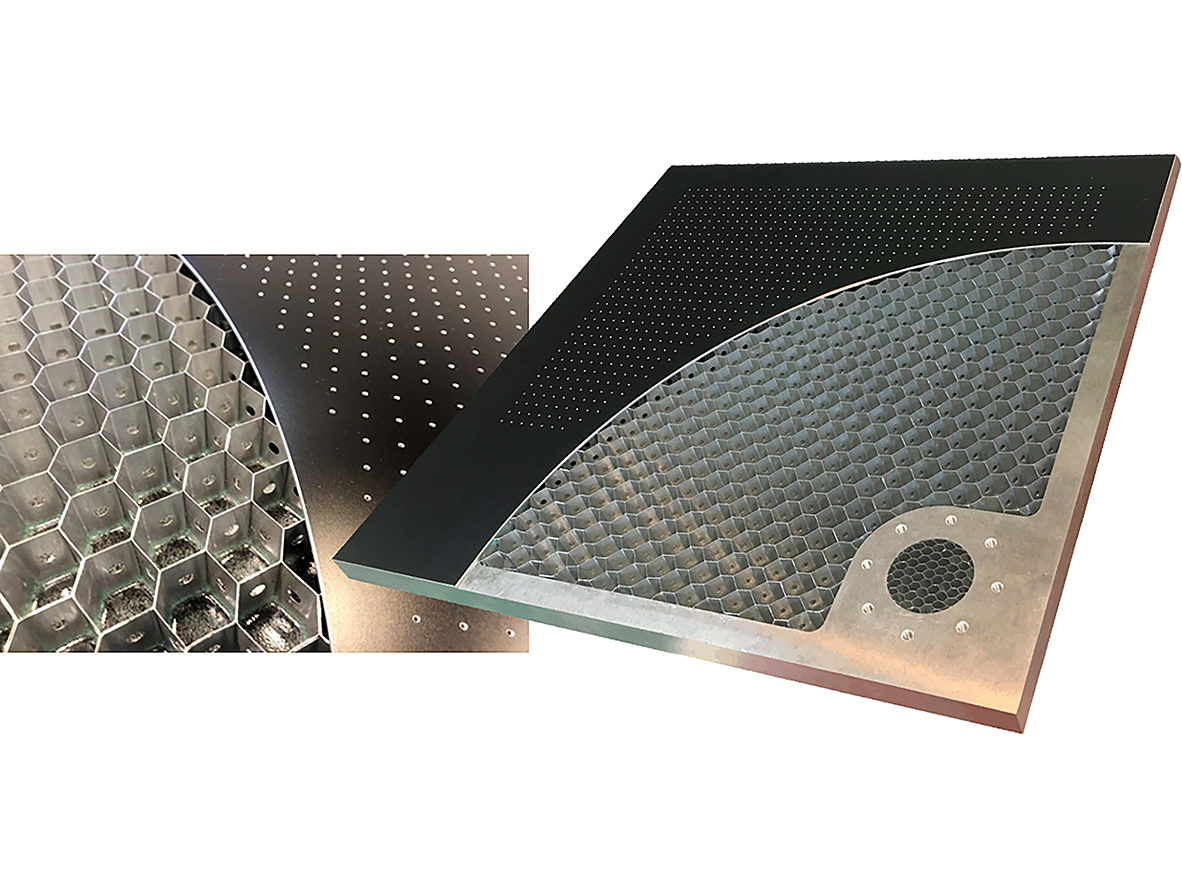

Kobelco North introduces aluminum honeycomb vacuum chucks optimized for reducing the weight of manufacturing equipment.
As manufacturing equipment continues to increase in size, floor load capacity has become a critical design challenge.
By adopting aluminum honeycomb panels for equipment tables, table weight can be reduced to 20 kg/m² or less.
Reducing table weight enables downsizing of table drive systems and peripheral equipment, contributing to overall equipment weight reduction.
Custom-designed honeycomb panels and vacuum chucks can be supplied as a one-package solution.
Handling company: Kobelco North Co., Ltd. (Japanese site)
Features
- Large tables up to 2000 × 8000 mm can be constructed using honeycomb panels.
- Custom-designed tables can be converted into vacuum chucks.
- Supports segmentation of chuck areas and various hole processing requirements.
- Compatible with various materials and shapes when combined with porous foil sheets.
| Hole diameter: | ≥ 0.5 mm |
|---|---|
| Hole pitch: | ≥ 10 mm |
| Maximum size: | 2000 × 8000 mm |
| Flatness: | 0.2 mm |
| Surface finish: | As-built / Anodized / Machined finish |
