寒冷地仕様大入熱溶接型鋼

特長

  • −50℃~−20℃という極寒の使用温度においても高いシャルピー吸収エネルギーを示す、優れた低温じん性を有している鋼材です。
  • 炭酸ガスアーク溶接継手(入熱量:4.0kJ/mm)、大入熱エレクトロガス溶接継手(入熱量:35.0kJ/mm)においても高いシャルピー吸収エネルギーが得られ、優れたHAZじん性を確保できます。
  • 溶接時の予熱温度も25℃まで低減可能であり、予熱作業およびその付帯作業の軽減が可能となります。

母材の機械的性質 Mechanical properties of base metal

Steels Plate Thickness
(mm)
Chemical Composition
(mass %)
Ceq※1(%) Pcm※2(%) Mechanical Properties Weldability※3
C Mn Ti YP
(N/mm2
TS
(N/mm2
vE-20(J) vE-50(J) Preheating Temp(℃)
SM490YB Developed Steel 30 0.08 1.55 0.012 0.34 0.16 485 526 339 331 25
Conventional Steel 0.16 1.35 0.40 0.24 408 542 154 68 25
SM520C Developed Steel 50 0.08 1.54 0.013 0.34 0.16 455 548 342 328 25
Conventional Steel 0.17 1.34 0.42 0.26 461 562 162 59 50
  1. ※1Ceq(%)=C+Mn/6+Si/24+Ni/40+Cr/5+Mo/4+V/14
  2. ※2Pcm(%)=C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B
  3. ※3y-groove weld cracking test

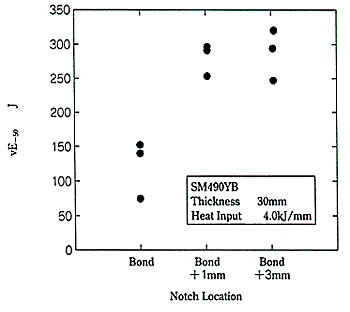

GMAW継手のシャルピ衝撃試験結果
Charphy impact test result of GMAW joint

GMAW継手のシャルピ衝撃試験結果のグラフ

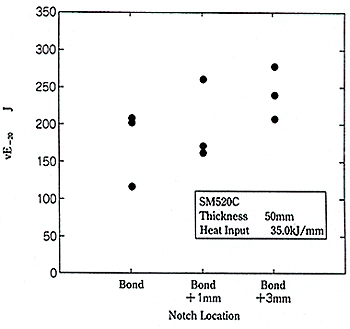

SEGARC継手のシャルピ衝撃試験結果
Charphy impact test result of SEGARC joint

SEGARC継手のシャルピ衝撃試験結果のグラフ
