Pre-Alloyed Type Alloy Steel Powder
Pre-alloyed low alloy steel powder combining high density with high strength
Features
- High compressibility
By reducing impurity elements and ensuring adequate soft annealing, it features high compressibility for an allow steel powder.
- High strength
Maintains a uniform structure and high strength even when sintered or heat treated.
- Application to sinter hardening
When rapidly cooled after sintering a uniform martensite structure is formed, providing high tensile strength.
| Steel grade name | Ni | Mo | Mn | Cr | Features |
|---|---|---|---|---|---|
| 46F2H | 0.50 | 0.50 | - | - | High-compressibility pre-alloyed steel powder |
| 46F3H | 1.50 | 1.00 | - | - | High-strength pre-alloyed steel powder for sintering |
| 46F4H | 0.50 | 1.00 | - | - | High-strength pre-alloyed steel powder for heat treatment |
| 4600 | 2.00 | 0.50 | - | - | High-strength pre-alloyed steel powder |
| 44FH | - | 1.50 | - | - | (Carburized) high-fatigue pre-alloyed steel powder |
| 44FH30 | - | 0.30 | - | - | High-strength pre-alloyed steel powder for sintering |
| 44FH85 | - | 0.85 | - | - | (Carburized) high-fatigue pre-alloyed steel powder |
| 94FDH | 1.50 | 1.00 | 0.32 | 0.25 | Sinter hardening alloy steel powder Hardenability is improved by adding Cr and Mn to 46F3H |

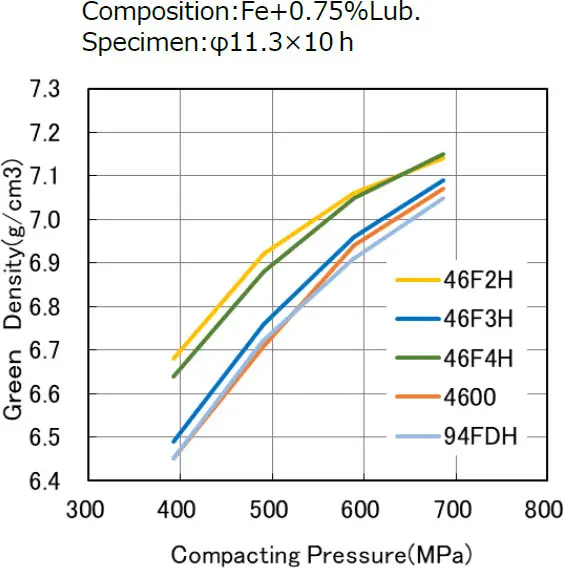

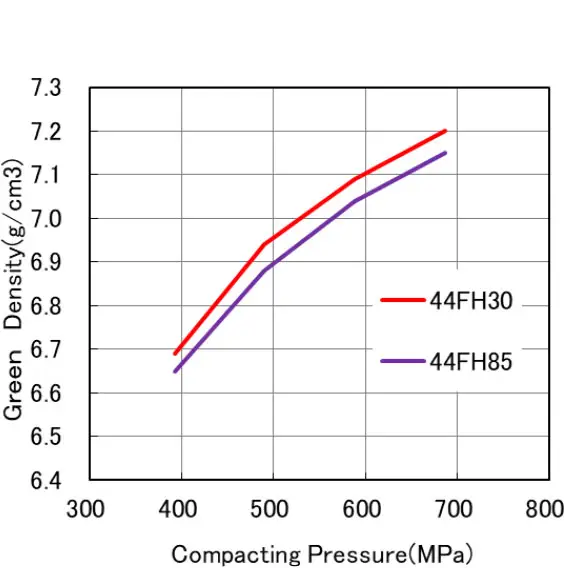

Compressibility

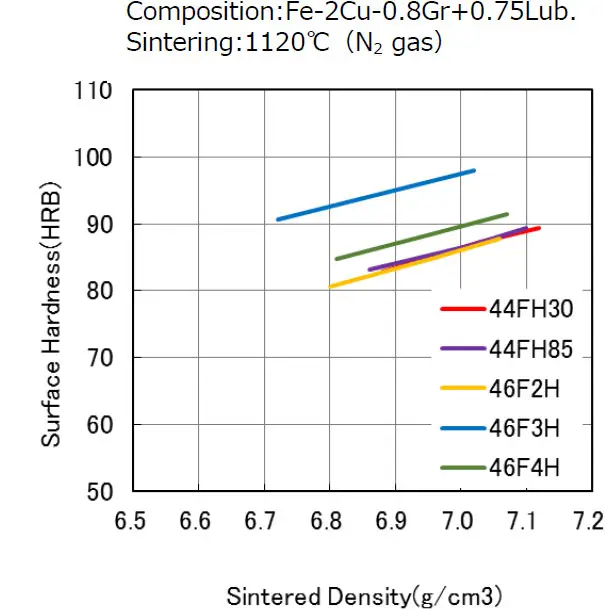

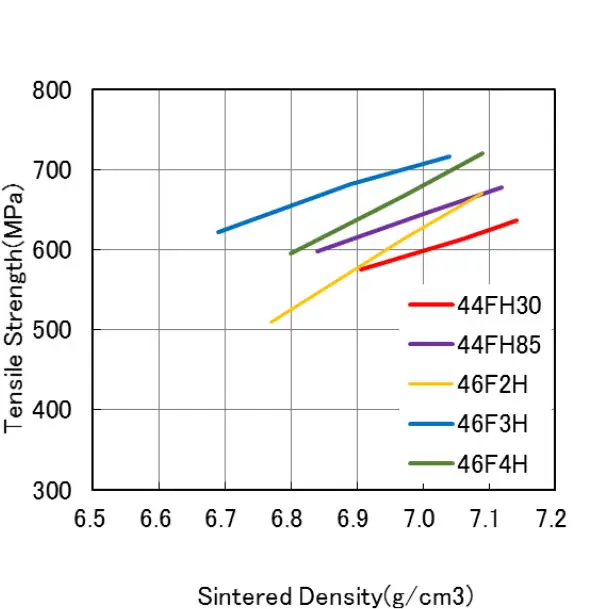

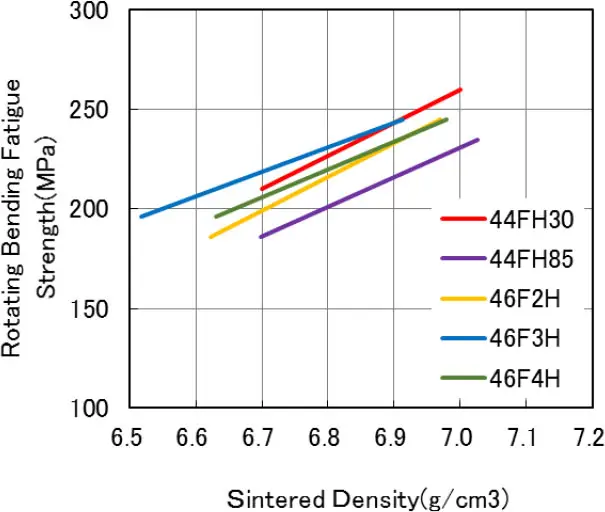

Mechanical Properties of Sintering Materials

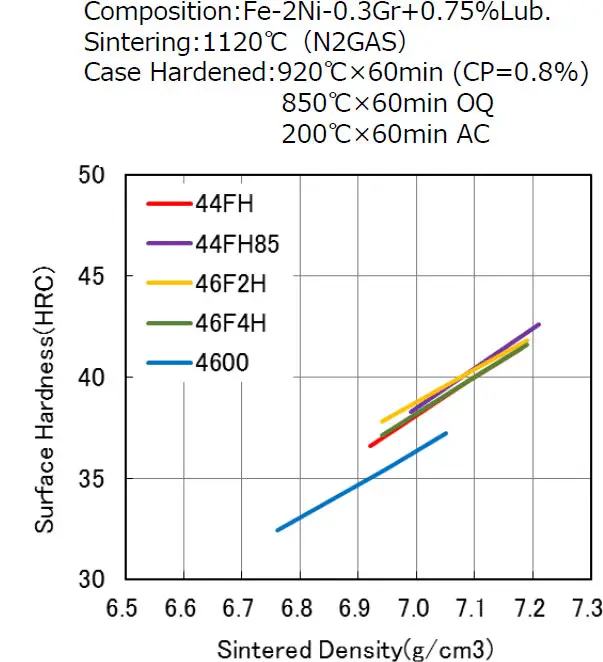

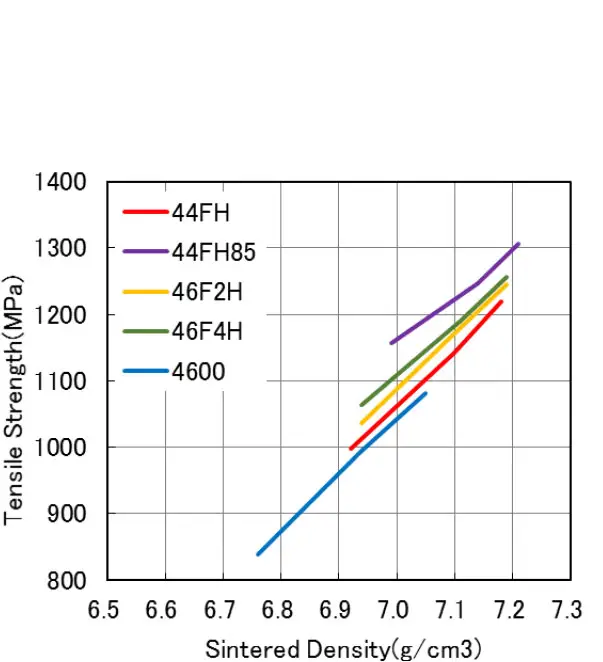

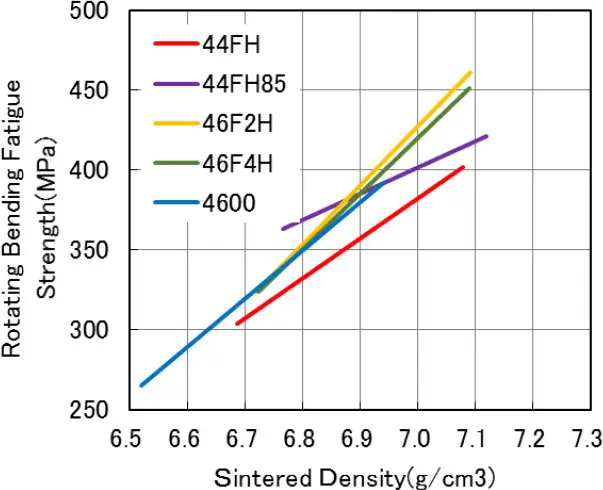

Mechanical Properties of Carburizing Materials

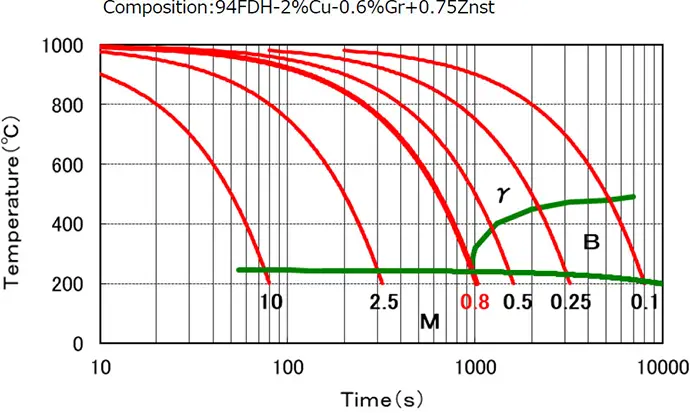

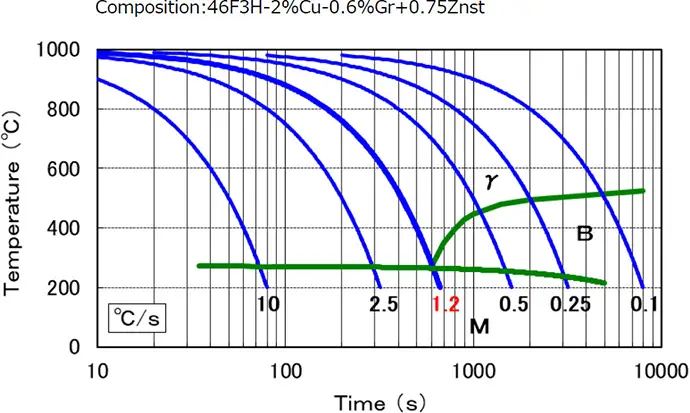

CCT Curve of Sinter Hardening Materials

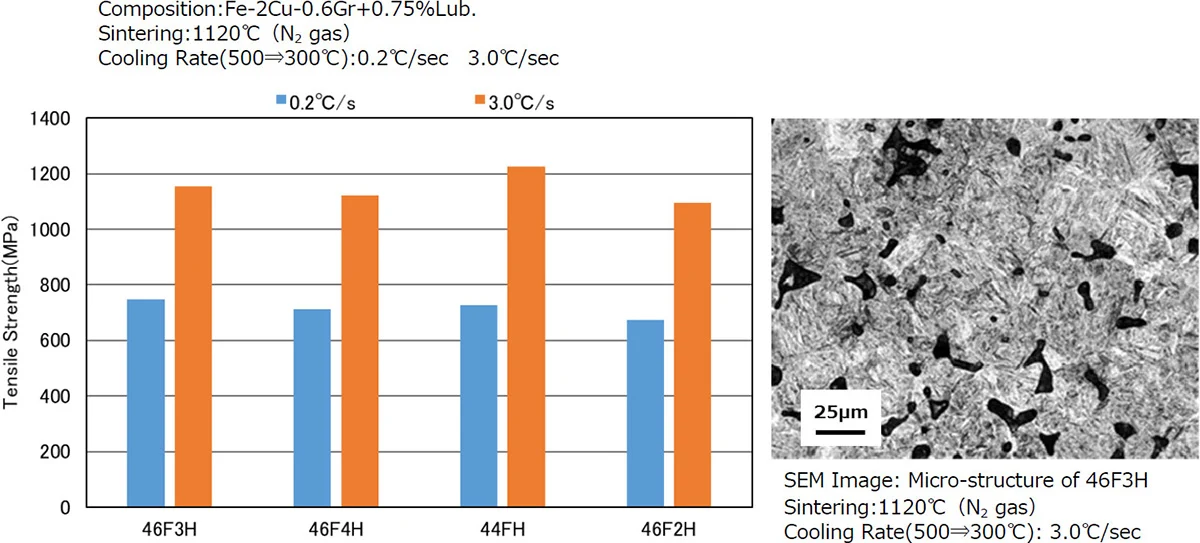

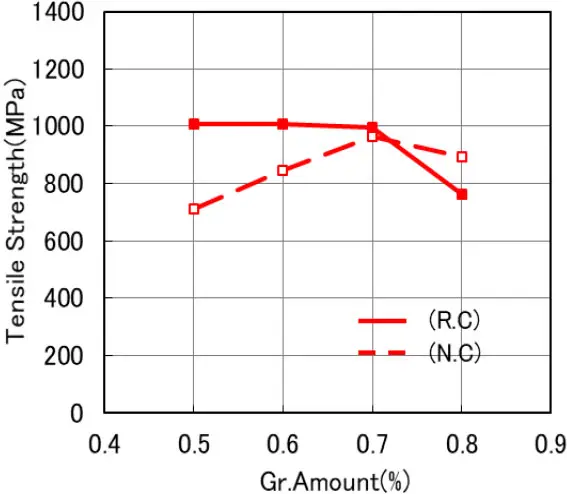

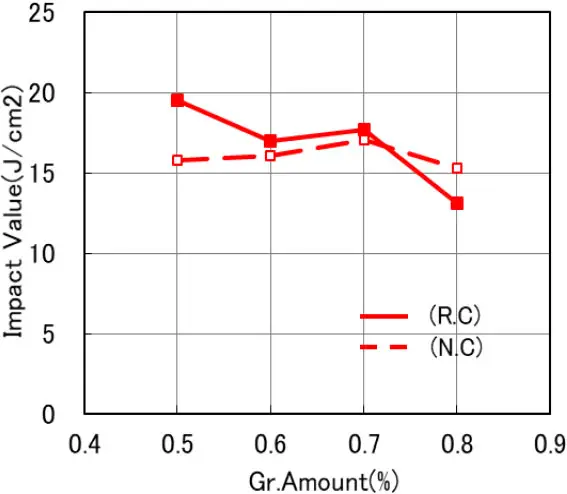

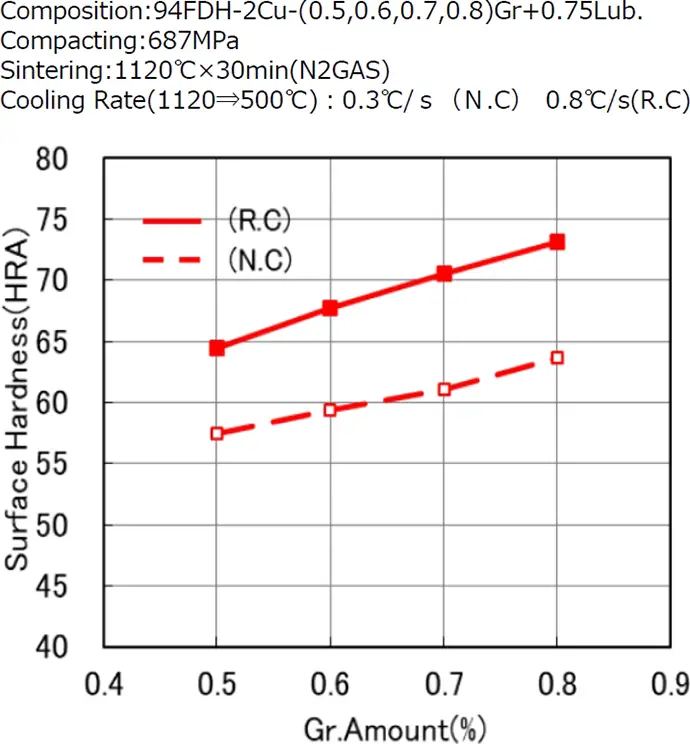

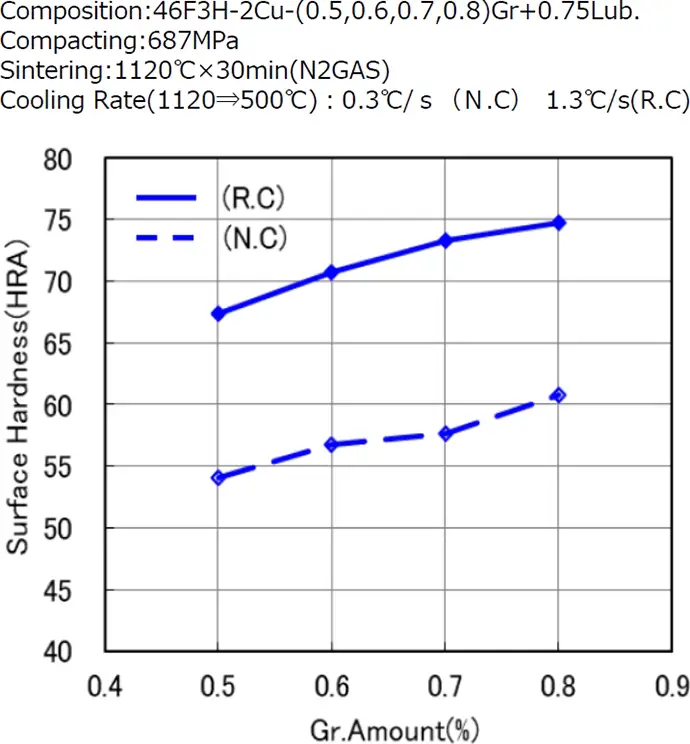

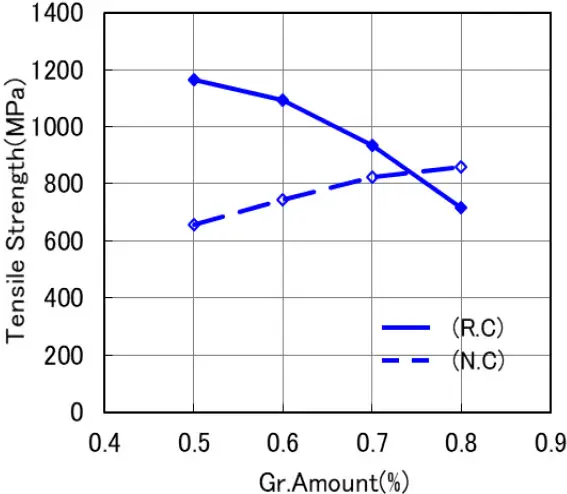

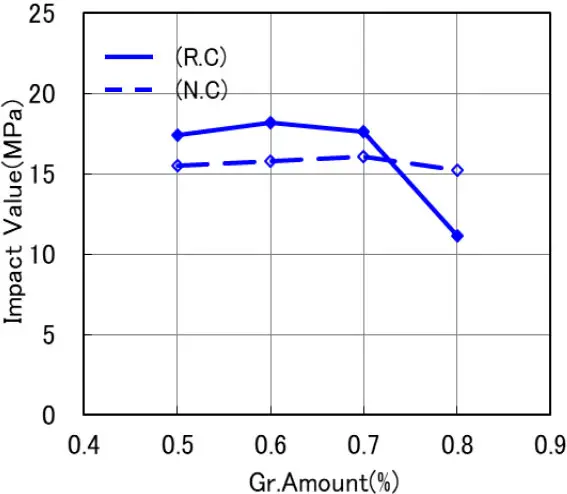

Mechanical Properties of Sinter Hardening Materials
Applications
Automotive, motorcycle, industrial machinery, office equipment, and electrical equipment parts
