Titanium Foil

Kobe Steel uses originally developed high-performance rolling mills to manufacture titanium foil with excellent sheet thickness accuracy and shape.

Features

(1) Products

Kobe Steel offers titanium foil in sheets or coils depending on your needs.
Contact us for standards and sizes not listed below, including originally developed alloys.

Applicable standards
Classification Standard
Kobe Steel Standards Commercially pure titanium KS40S and KS40
High strength alloys KS15-3-3-3
JIS H 4600 Commercially pure titanium Class 1
ASTM B265 Commercially pure titanium Grade 1

Available manufacturing scope of commercially pure titanium foil*

Foil can be manufactured with standard thicknesses up to 10 µm.

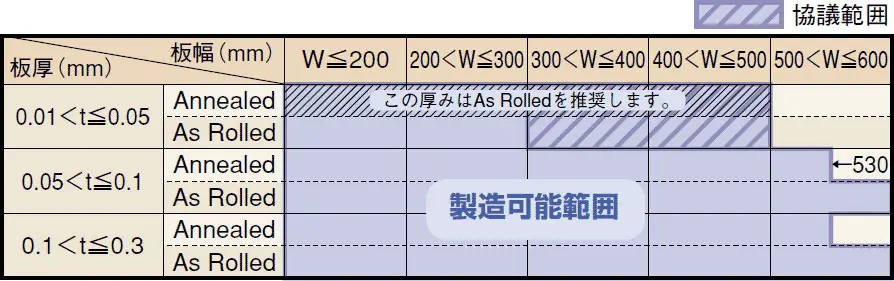

Table of available manufacturing scope of commercially pure titanium foil
Annealed: Material that has been annealed after rolling.
As Rolled: Rolled material that has not been annealed.
  • *Depending on the material, the available manufacturing scope may vary. For further information, please contact us.

(2) Quality control system

Kobe Steel integrates the entire manufacturing process from melting (which determines the ingredient formulation) to the final rolling and heat treatment processes, to deliver high-quality products best-suited for each application.

Applicarions

  • Battery parts and circuit boards
  • Electrodes
  • High corrosion-resistant filters
  • Speaker diaphragm
  • Corrosion-proofing films
  • Other functional materials (corrosion-proofing, strengthening)

New fields (automobiles)

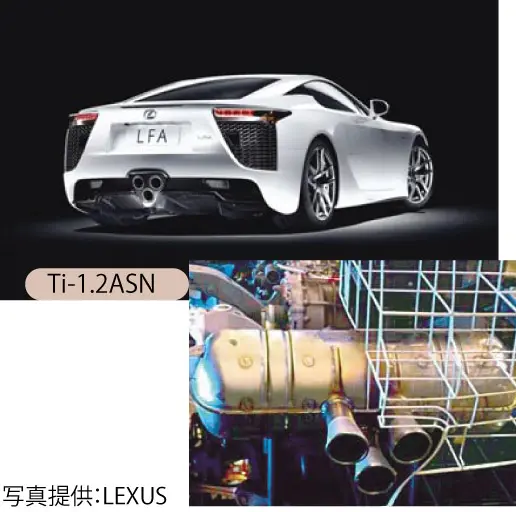

Mufflers
Mufflers
Photo courtesy of Toyota Motor Corporation

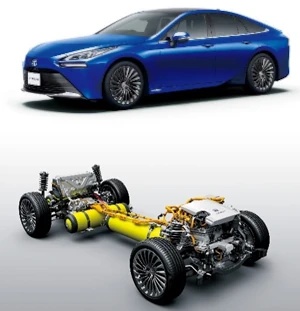

Fuel cell separators

Specifications and available manufacturing scope
