Commercially Pure Titanium KS100, Low-Alloy Titanium KS120SI
These materials are ideal for products in which titanium is unsutable due to the insufficiency of strength and hardness of conventional commercially pure titanium, as well as the high manufacturing costs and low workability of titanium alloys. This alloy product is desined to addresses everything from biocompatibility to workability (hot and cold workability, machinability), strength, hardness, and cost.
Features
Our products offer the following features that outperform titanium alloys of equivalent strength (such as Ti-3Al-2.5V).
- Excellent hot workability and mirror polishing properties
- Excellent scratch resistance, and maintains a beautiful surface finish (mirror finish, hairline, etc.)
- Does not use expensive additive elements
- Alloy design does not contain Ni, V, or other elements; addresses biocompatibility and metal allergies
Characteristics
| Material/Characteristics | Tensile properties at room temperature | Bendability | Hardness | ||
|---|---|---|---|---|---|
| Tensile strength (MPA) |
Yield strength (MPa) |
Elongation (％) |
(180°) t≦5.0 |
Vickers hardness (Hv) |
|
| KS100 | ≧650 | ≧550 | ≧15 | ≧3t | 230–280 |
| KS120SI | ≧750 | ≧650 | ≧10 | ≧3t | 270–320 |
Product shapes
| Coils | Sheets | Heavy plates | Wires, bars | Forgings | 溶接管 | |
|---|---|---|---|---|---|---|
| KS100 | ○ | ○ | ○ | ○ | ○ | ○ |
| KS120SI | ○ | ○ | ○ | ○ | ○ | ○ |
Applications

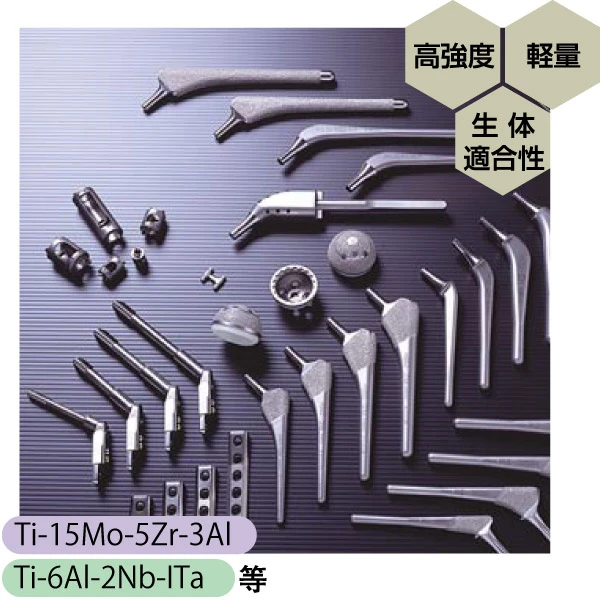

- Medical devices
- Sporting goods

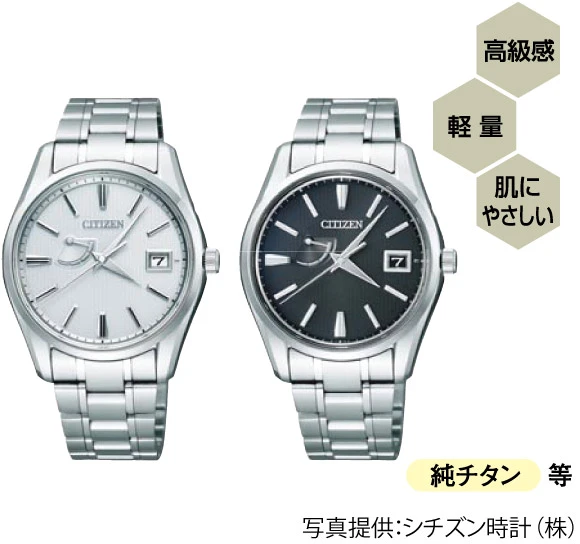

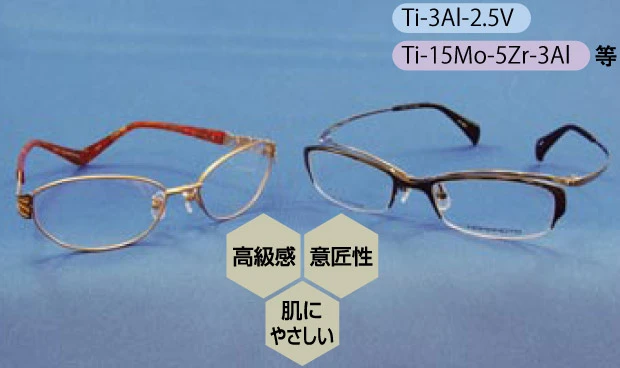

- Eyeglasses

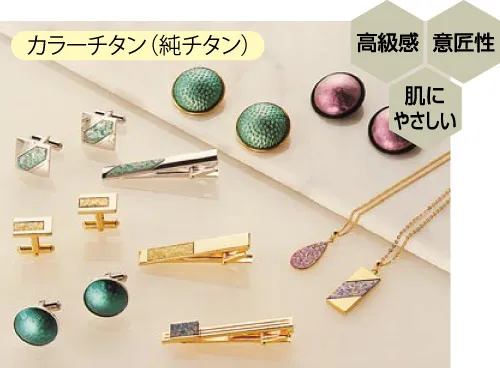

- Fashion accessories
- Vacuum containers, devices

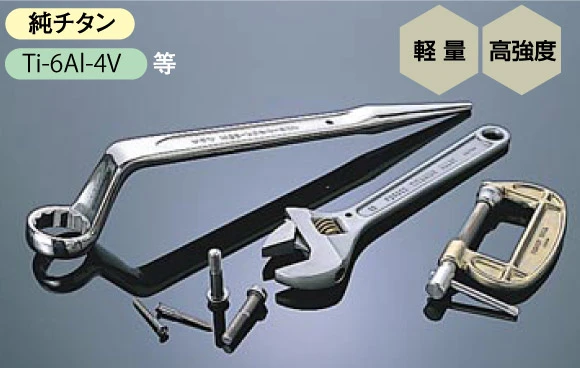

- Precision instruments
New fields (healthcare and welfare)

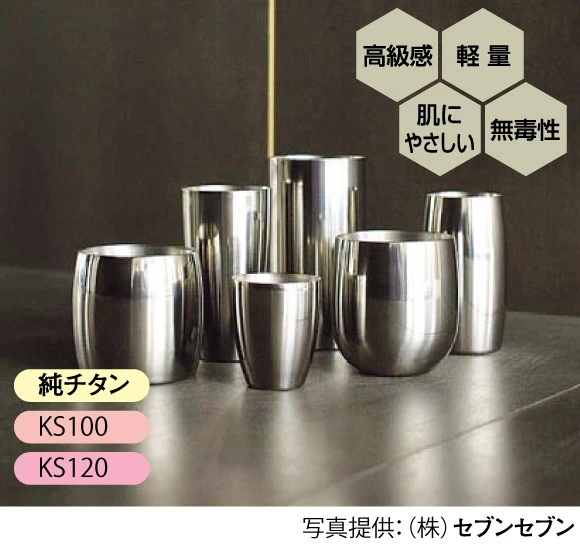

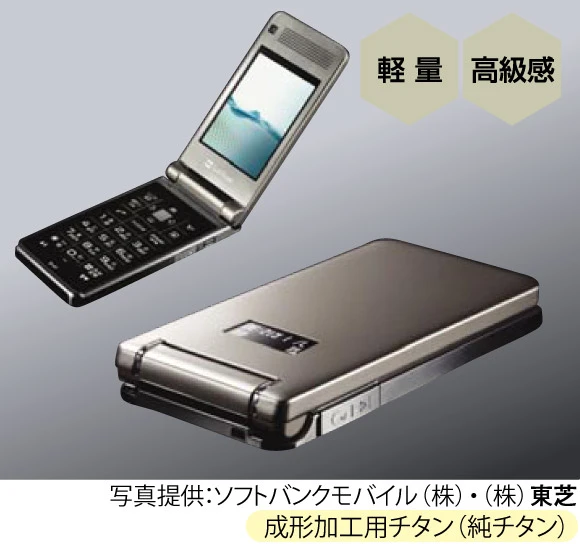

New fields (consumer products)
Specifications and available manufacturing scope
