Titanium Alloys for Two-Wheel and Four-Wheel Vehicle Mufflers

Features

KSTI-1.2ASNEX™

This titanium alloy product offers the formability of commercially pure titanium while being two to three times stronger than commercially pure titanium at high temperatures. It also has improved high-temperature anti-oxidation properties, which is a weak point for commercially pure titanium, making it ideal for mufflers.

KSTI-1.5AL (JIS Class 50, ASTM Gr. 37)

This titanium alloy product is the world’s first mass-produced titanium alloy for mufflers. It retains the formability of commercially pure titanium while achieving two to three times more strength than commercially pure titanium at high temperatures. It has a proven track record in the muffler industry, and is registered as a JIS standard and ASTM standard.

  KSTI-1.2ASNEX KSTI-1.5AL
Physical properties Equivalent to JIS Class 2 commercially pure titanium
Strength Room temperature Equivalent to JIS Class 2 commercially pure titanium
High temperature 2 to 3 times stronger than JIS Class 2 commercially pure titanium
→Offers longer life and potential weight reduction through down-gauging
Formability Similar to JIS Class 2 commercially pure titanium
Resistance to high-temperature oxidation Superior to KSTI-1.5AL Superior to JIS Class 2 commercially pure titanium
Operating temperature range (guideline) 700~800℃ <700°C (commercially pure titanium: <650℃)
Applications Two-wheel and four-wheel vehicle mufflers Offers high reliability when used as an alternative for commercially pure titanium Two-wheel and four-wheel vehicle mufflers Allows for the use of titanium for parts in which commercially pure titanium was not employed due to high-temperature oxidation.

Applications

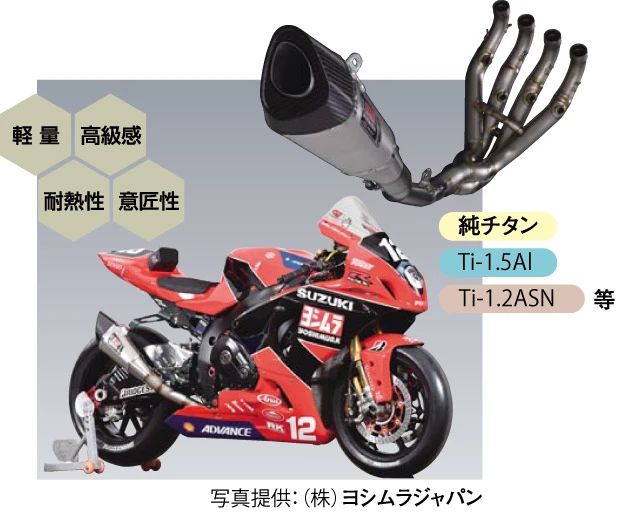

  • Two-wheel vehicle mufflers
    Various internal parts such as exhaust pipes, silencers, tail pipes, catalyst cases, and separators

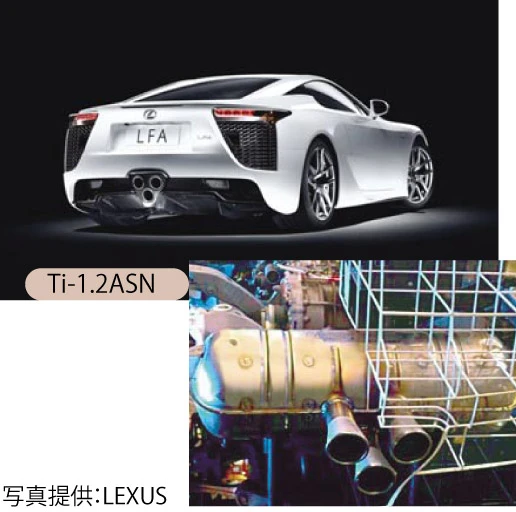

  • Four-wheel vehicle mufflers
    Various internal parts such as center pipes, silencers, tail pipes, and separators
  • Marine mufflers

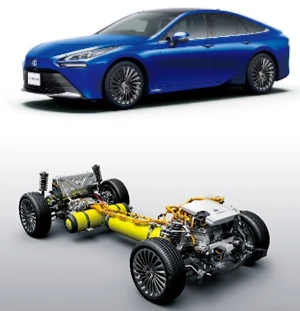

New fields (automobiles)

Mufflers
Mufflers
Photo courtesy of Toyota Motor Corporation
Fuel cell separators

Specifications and available manufacturing scope
