Corrosion Resistance Titanium Alloy AKOT

AKOT is a highly economical corrosion-resistant titanium alloy with greatly improved corrosion resistance while maintaining the excellent workability of pure titanium.

Features

  • Excellent all-surface and crevice corrosion resistance
  • Mechanical properties, workability and weldability equivalent to JIS Class 2 commercially pure titanium
  • Less expensive than Ti-0.15Pd alloy

Basic composition

Ti-0.4Ni-0.015Pd-0.025Ru-0.14Cr

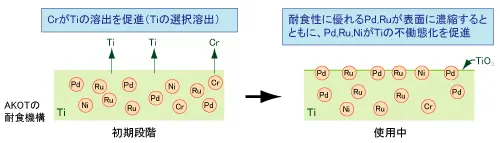

Corrosion resistance mechanism

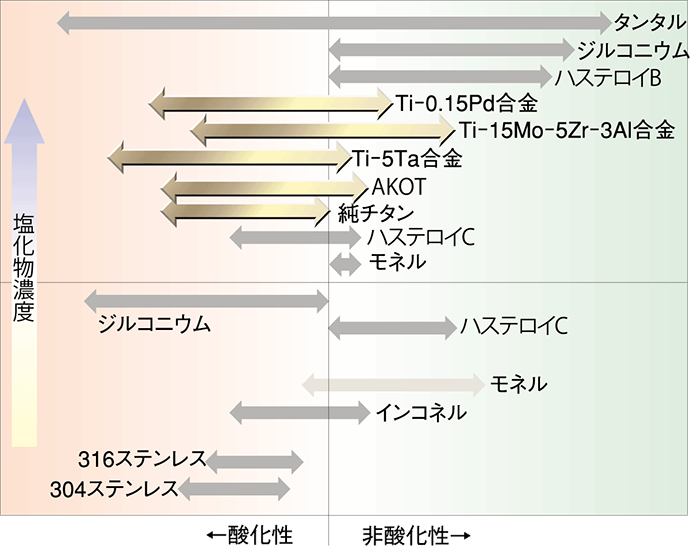

Corrosion-resistant area

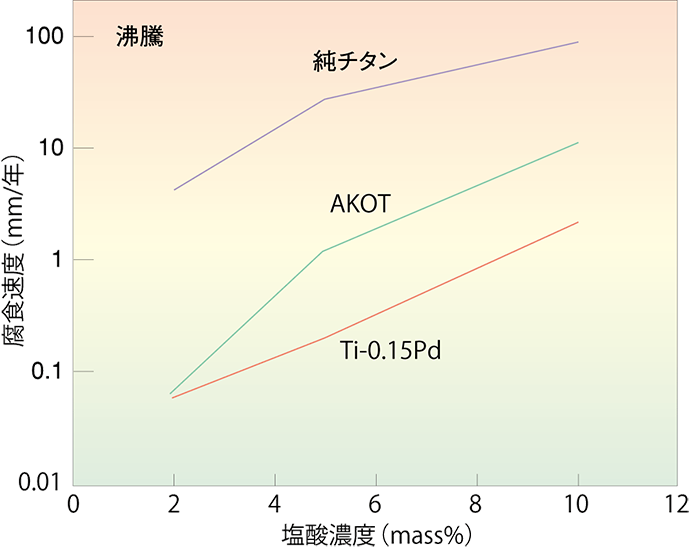

All-surface corrosion resistance

Crevice corrosion resistance

Product standards

Kobelco standards JIS standards ASTM standards Remarks
Strength level Formability level Comparison with CP Titanium
KS50AKOT Class 14 --- Low
↑
↓
High
Low
↑
↓
High
KS50, equivalent to JIS Class 2 CP Titanium
↑
↓
KS70, equivalent to JIS Class 3 CP Titanium
KS60AKOT Gr33
KS70AKOT Class 15 Gr34

Product shapes

  • Sheets
  • Pipes
  • Bars and wires

Application examples

  • Shell and tube-type heat exchangers
  • Electrolytic tank components (soda electrolysis, etc.)
  • Various piping, etc.

Electrical and chemical plants

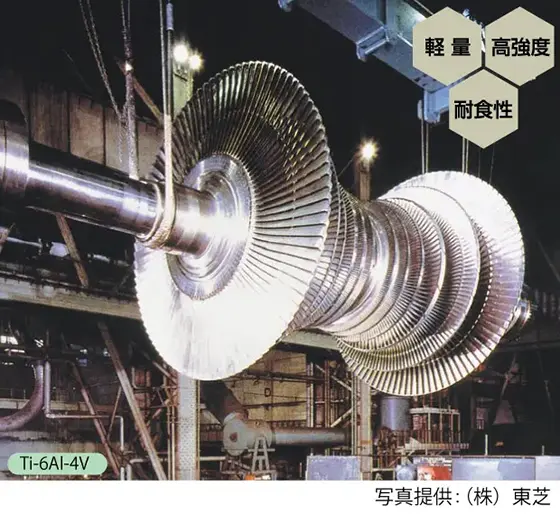

Steam turbine plates

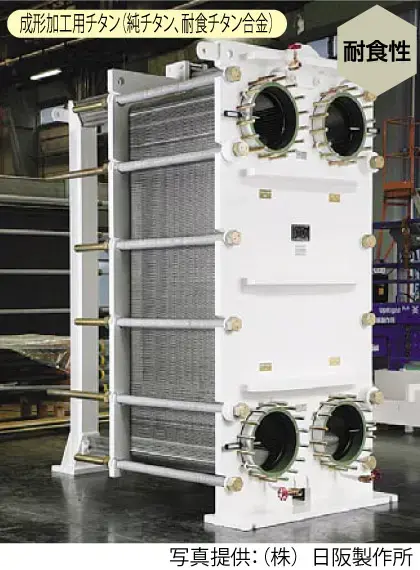

Plate heat exchangers

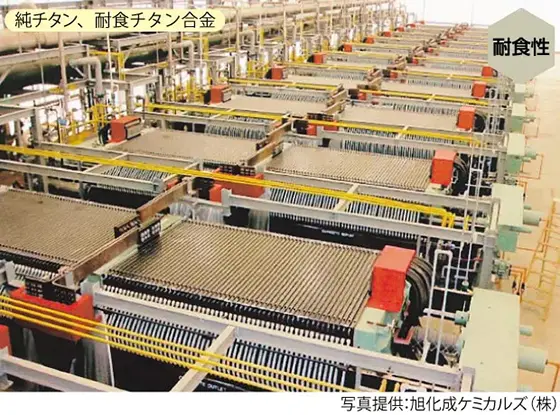

Caustic soda electrolysis tanks
Photo provided by: Asahi Kasei Corporation
