Aluminum Forgings for Automotive Suspensions

Aluminum is being actively used for automotive suspensions due to the need for lightweight materials. Kobe Steel has achieved over 40% weight reduction compared to conventional steel parts, driving us to the top market share in Japan.

Features

  • Our aluminum forging products for automotive suspensions are manufactured with a fully integrated line from continuous casting of bars to forging, heat treatment, and inspection.
  • We meet a wide range of needs with our one-heat continuous forging technology using a heavy-duty 6,300-ton press with multiple die configurations and our solution-oriented product development system based on structural analysis.
1

Manufacturing and Production Technology

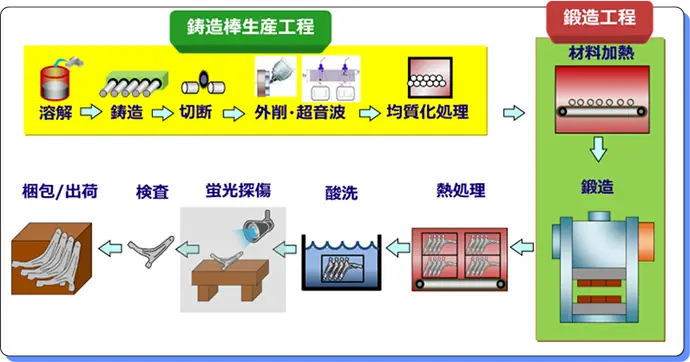

Fully integrated production system
  • Fully integrated production system from alloy production to forging, inspection, and shipping.
  • Our production engineering technology enables the production of medium to large parts at low cost, utilizing the forming capacity of one of the largest heavy-duty mechanical presses (6,300-ton press).
  • Our horizontal continuous casting process allows for the low-cost production of large-diameter casting bars used as raw material.
  • We recycle burr generated in the factory.
2

Material Development Technology

Weight reduction by using aluminum

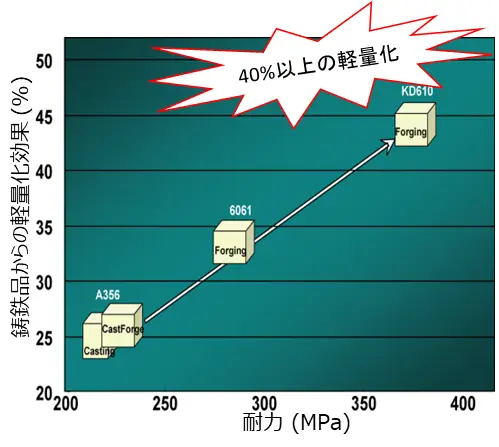

  • Our proprietary high-strength alloy KD610 achieves over 40% weight reduction compared to cast iron.

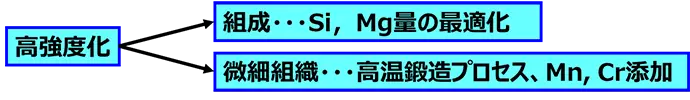

  • Material strength is increased by examining material compositions and the conditions of casting bar production, forging, and heat treatment.
3

Design Development Technology

  • Using analysis techonology, we offer optimum geometries that are lightweight and highly manufacturable.

Design method using analysis technology

Design conditions

Input conditions, interference conditions
→ Create design concept


Concept design

Topology optimization
→ Determine topologically optimized shape


Detailed design

Structural analysis, Metal flow analysis
→ Make final model determining performance and manufacturebility

Product Examples

  • Knuckle
  • Carrier
  • Front Lower Compression Arm
