High Conductivity and Higher Softening Resistance Copper Alloy KFC™
CDA No. 19210
Copper alloy with excellent softening resistance than C14415. (Cu-0.15%.Sn)
KFC™ has small amount of iron and phosphorus in chemical compositions, and is hardened by Fe2P precipitates in copper matrix.
Good Points
- Has excellent electrical and thermal conductivity.
- Has higher strength than pure copper and C14415.
- Has higher softening temperature above 400 degree, and higher than C14415.
- Has good bare bondability.
- Has good stamping formability and etching formability.
- Has good solderability and platability. It maybe reduce the protrusions by the silver plating.
Nominal Compositions
Cu-0.1Fe-0.03P (mass %)
Characteristics

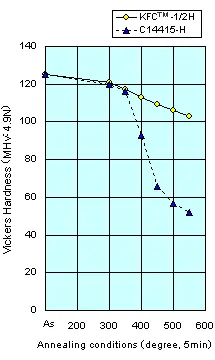

Fig. Softening Resistance of KFC™
1. Physical Properties
| Specific Gravity | 8.9 |
|---|---|
| Coefficient of Thermal Expansion (293～573K) |
17.5 x 10-6/K |
| Thermal Conductivity (293K) | 364 W/m.K |
| Electrical Resistivity (293K) | 18.2 nΩ .m |
| Electrical Conductivity (293K) | 90 %IACS |
| Modulus Elasticity (293K) | 125 GPa |
* The above are typical characteristics.
2. Mechanical Properties
| Temper | Tensile Strength MPa |
Elongation
% |
Vickers Hardness MHv: 4.9N |
|---|---|---|---|
| O | 275～345 | 30 min | - |
| 1/4H | 295～370 | 15 min | 85～110 |
| 1/2H | 350～430 | 4 min | 100～130 |
| H | 390～470 | 2 min | 120～145 |
* The above tensile strength and hardness are our standard specifications. We will adjust these specifications by your requests.
3. 90°V-type Bend-formability (MBR)
| Temper | Good Way | Bad Way |
|---|---|---|
| 1/2H | 0 | 0 |
| H | 0 | 0 |
* The above are typical characteristics.
The value slightly varies depending on the thickness of specimens.
Use
Leadframe for Transistor, Leadframe for LED, Heat sink for IGBT, Heat spreader, Heat spreader for BGA, Inner-frame for Heat spreader etc.
Others
Not used cadmium (Cd), lead (Pb), mercury (Hg), six value chrome (Cr+6), polybrominated biphenyl (PBB), Polybrominated biphenyl ether (PBDE) restricted with RoHS etc.
